Projects/Azpen A1160

From Bitlair
Jump to: navigation, search


Project Azpen HYBRX A1160 Debian
Name Azpen HYBRX A1160 Debian
Start 2017/05/05
End
Contact User:WilcoBaanHofman
Website
Information Installing Debian on Allwinner A64 laptop HYBRX A1160
Status Beta


UART

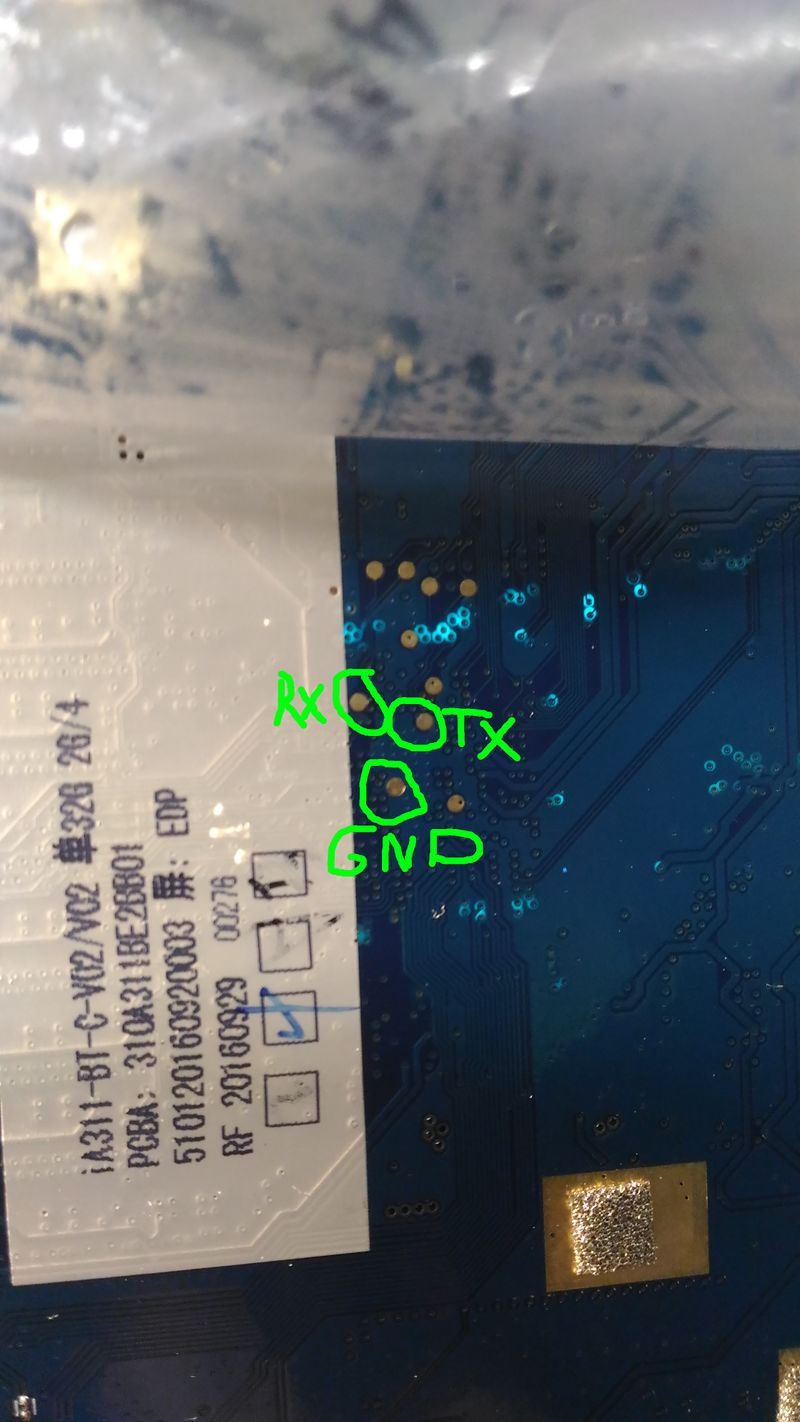

Locate the UART. It is at the back (top) side of the PCB, on the other side of the Allwinner A64-chip. Peel back the plastic a bit first.

A1160 UART.jpg

Device Tree

/dts-v1/;

/memreserve/	0x0000000045000000 0x0000000000200000;
/memreserve/	0x0000000041010000 0x0000000000010000;
/memreserve/	0x0000000041020000 0x0000000000000800;
/memreserve/	0x0000000040100000 0x0000000000004000;
/memreserve/	0x0000000040104000 0x0000000000001000;
/memreserve/	0x0000000040105000 0x0000000000001000;
/ {
	model = "sun50iw1p1";
	compatible = "arm,sun50iw1p1", "arm,sun50iw1p1";
	interrupt-parent = <0x1>;
	#address-cells = <0x2>;
	#size-cells = <0x2>;

	clocks {
		compatible = "allwinner,sunxi-clk-init";
		device_type = "clocks";
		#address-cells = <0x2>;
		#size-cells = <0x2>;
		ranges;
		reg = <0x0 0x1c20000 0x0 0x320 0x0 0x1f01400 0x0 0x1c0 0x0 0x1f00060 0x0 0x4>;

		losc {
			#clock-cells = <0x0>;
			compatible = "allwinner,fixed-clock";
			clock-frequency = <0x8000>;
			clock-output-names = "losc";
			linux,phandle = <0xc>;
			phandle = <0xc>;
		};

		iosc {
			#clock-cells = <0x0>;
			compatible = "allwinner,fixed-clock";
			clock-frequency = <0xf42400>;
			clock-output-names = "iosc";
			linux,phandle = <0xd>;
			phandle = <0xd>;
		};

		hosc {
			#clock-cells = <0x0>;
			compatible = "allwinner,fixed-clock";
			clock-frequency = <0x16e3600>;
			clock-output-names = "hosc";
			linux,phandle = <0x6>;
			phandle = <0x6>;
		};

		pll_cpu {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-pll-clock";
			lock-mode = "new";
			clock-output-names = "pll_cpu";
		};

		pll_audio {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-pll-clock";
			lock-mode = "new";
			assigned-clock-rates = <0x1770000>;
			clock-output-names = "pll_audio";
			linux,phandle = <0x2>;
			phandle = <0x2>;
		};

		pll_video0 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-pll-clock";
			lock-mode = "new";
			assigned-clock-rates = <0x11b3dc40>;
			clock-output-names = "pll_video0";
			linux,phandle = <0x3>;
			phandle = <0x3>;
		};

		pll_ve {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-pll-clock";
			lock-mode = "new";
			clock-output-names = "pll_ve";
			linux,phandle = <0x16>;
			phandle = <0x16>;
		};

		pll_ddr0 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-pll-clock";
			lock-mode = "new";
			clock-output-names = "pll_ddr0";
			linux,phandle = <0x97>;
			phandle = <0x97>;
		};

		pll_periph0 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-pll-clock";
			lock-mode = "new";
			clock-output-names = "pll_periph0";
			linux,phandle = <0x4>;
			phandle = <0x4>;
		};

		pll_periph1 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-pll-clock";
			lock-mode = "new";
			clock-output-names = "pll_periph1";
			linux,phandle = <0x5>;
			phandle = <0x5>;
		};

		pll_video1 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-pll-clock";
			lock-mode = "new";
			assigned-clock-rates = <0x11b3dc40>;
			clock-output-names = "pll_video1";
		};

		pll_gpu {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-pll-clock";
			lock-mode = "new";
			clock-output-names = "pll_gpu";
			linux,phandle = <0x9a>;
			phandle = <0x9a>;
		};

		pll_mipi {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-pll-clock";
			lock-mode = "new";
			clock-output-names = "pll_mipi";
			linux,phandle = <0x8>;
			phandle = <0x8>;
		};

		pll_hsic {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-pll-clock";
			lock-mode = "new";
			clock-output-names = "pll_hsic";
			linux,phandle = <0x3c>;
			phandle = <0x3c>;
		};

		pll_de {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-pll-clock";
			lock-mode = "new";
			assigned-clock-rates = <0x11b3dc40>;
			clock-output-names = "pll_de";
			linux,phandle = <0x7>;
			phandle = <0x7>;
		};

		pll_ddr1 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-pll-clock";
			lock-mode = "new";
			clock-output-names = "pll_ddr1";
			linux,phandle = <0x98>;
			phandle = <0x98>;
		};

		pll_audiox8 {
			#clock-cells = <0x0>;
			compatible = "allwinner,fixed-factor-clock";
			clocks = <0x2>;
			clock-mult = <0x8>;
			clock-div = <0x1>;
			clock-output-names = "pll_audiox8";
		};

		pll_audiox4 {
			#clock-cells = <0x0>;
			compatible = "allwinner,fixed-factor-clock";
			clocks = <0x2>;
			clock-mult = <0x8>;
			clock-div = <0x2>;
			clock-output-names = "pll_audiox4";
			linux,phandle = <0x3f>;
			phandle = <0x3f>;
		};

		pll_audiox2 {
			#clock-cells = <0x0>;
			compatible = "allwinner,fixed-factor-clock";
			clocks = <0x2>;
			clock-mult = <0x8>;
			clock-div = <0x4>;
			clock-output-names = "pll_audiox2";
		};

		pll_video0x2 {
			#clock-cells = <0x0>;
			compatible = "allwinner,fixed-factor-clock";
			clocks = <0x3>;
			clock-mult = <0x2>;
			clock-div = <0x1>;
			clock-output-names = "pll_video0x2";
		};

		pll_periph0x2 {
			#clock-cells = <0x0>;
			compatible = "allwinner,fixed-factor-clock";
			clocks = <0x4>;
			clock-mult = <0x2>;
			clock-div = <0x1>;
			clock-output-names = "pll_periph0x2";
			linux,phandle = <0x7f>;
			phandle = <0x7f>;
		};

		pll_periph1x2 {
			#clock-cells = <0x0>;
			compatible = "allwinner,fixed-factor-clock";
			clocks = <0x5>;
			clock-mult = <0x2>;
			clock-div = <0x1>;
			clock-output-names = "pll_periph1x2";
			linux,phandle = <0x5e>;
			phandle = <0x5e>;
		};

		pll_periph0d2 {
			#clock-cells = <0x0>;
			compatible = "allwinner,fixed-factor-clock";
			clocks = <0x4>;
			clock-mult = <0x1>;
			clock-div = <0x2>;
			clock-output-names = "pll_periph0d2";
		};

		hoscd2 {
			#clock-cells = <0x0>;
			compatible = "allwinner,fixed-factor-clock";
			clocks = <0x6>;
			clock-mult = <0x1>;
			clock-div = <0x2>;
			clock-output-names = "hoscd2";
		};

		hoscx2 {
			#clock-cells = <0x0>;
			compatible = "allwinner,fixed-factor-clock";
			clocks = <0x6>;
			clock-mult = <0x2>;
			clock-div = <0x1>;
			clock-output-names = "hoscx2";
			linux,phandle = <0x37>;
			phandle = <0x37>;
		};

		cpu {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "cpu";
		};

		cpuapb {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "cpuapb";
		};

		axi {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "axi";
		};

		pll_periphahb0 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "pll_periphahb0";
		};

		ahb1 {
			#clock-cells = <0x0>;
			assigned-clock-rates = <0xbebc200>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "ahb1";
			linux,phandle = <0x99>;
			phandle = <0x99>;
		};

		apb1 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "apb1";
		};

		apb2 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "apb2";
			linux,phandle = <0x82>;
			phandle = <0x82>;
		};

		ahb2 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "ahb2";
		};

		ths {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "ths";
			linux,phandle = <0x88>;
			phandle = <0x88>;
		};

		nand {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "nand";
			linux,phandle = <0x84>;
			phandle = <0x84>;
		};

		sdmmc0_mod {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "sdmmc0_mod";
			linux,phandle = <0x64>;
			phandle = <0x64>;
		};

		sdmmc0_bus {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "sdmmc0_bus";
			linux,phandle = <0x65>;
			phandle = <0x65>;
		};

		sdmmc0_rst {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "sdmmc0_rst";
			linux,phandle = <0x66>;
			phandle = <0x66>;
		};

		sdmmc1_mod {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "sdmmc1_mod";
			linux,phandle = <0x69>;
			phandle = <0x69>;
		};

		sdmmc1_bus {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "sdmmc1_bus";
			linux,phandle = <0x6a>;
			phandle = <0x6a>;
		};

		sdmmc1_rst {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "sdmmc1_rst";
			linux,phandle = <0x6b>;
			phandle = <0x6b>;
		};

		sdmmc2_mod {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "sdmmc2_mod";
			linux,phandle = <0x5f>;
			phandle = <0x5f>;
		};

		sdmmc2_bus {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "sdmmc2_bus";
			linux,phandle = <0x60>;
			phandle = <0x60>;
		};

		sdmmc2_rst {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "sdmmc2_rst";
			linux,phandle = <0x61>;
			phandle = <0x61>;
		};

		ts {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "ts";
		};

		ce {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "ce";
			linux,phandle = <0x7e>;
			phandle = <0x7e>;
		};

		spi0 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "spi0";
			linux,phandle = <0x56>;
			phandle = <0x56>;
		};

		spi1 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "spi1";
			linux,phandle = <0x5a>;
			phandle = <0x5a>;
		};

		i2s0 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "i2s0";
			linux,phandle = <0x46>;
			phandle = <0x46>;
		};

		i2s1 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "i2s1";
			linux,phandle = <0x4b>;
			phandle = <0x4b>;
		};

		i2s2 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "i2s2";
			linux,phandle = <0x4c>;
			phandle = <0x4c>;
		};

		spdif {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "spdif";
			linux,phandle = <0x4d>;
			phandle = <0x4d>;
		};

		usbphy0 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "usbphy0";
			linux,phandle = <0x32>;
			phandle = <0x32>;
		};

		usbphy1 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "usbphy1";
			linux,phandle = <0x38>;
			phandle = <0x38>;
		};

		usbhsic {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "usbhsic";
			linux,phandle = <0x3a>;
			phandle = <0x3a>;
		};

		usbhsic12m {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "usbhsic12m";
			linux,phandle = <0x3b>;
			phandle = <0x3b>;
		};

		usbohci112m {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "usbohci112m";
			linux,phandle = <0x3e>;
			phandle = <0x3e>;
		};

		usbohci012m {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "usbohci012m";
			linux,phandle = <0x36>;
			phandle = <0x36>;
		};

		usbohci1 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "usbohci1";
			linux,phandle = <0x3d>;
			phandle = <0x3d>;
		};

		usbohci0 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "usbohci0";
			linux,phandle = <0x35>;
			phandle = <0x35>;
		};

		de {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			assigned-clock-parents = <0x7>;
			assigned-clock-rates = <0x11b3dc40>;
			clock-output-names = "de";
			linux,phandle = <0x6e>;
			phandle = <0x6e>;
		};

		tcon0 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			assigned-clock-parents = <0x8>;
			clock-output-names = "tcon0";
			linux,phandle = <0x6f>;
			phandle = <0x6f>;
		};

		tcon1 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			assigned-clock-parents = <0x3>;
			clock-output-names = "tcon1";
			linux,phandle = <0x70>;
			phandle = <0x70>;
		};

		deinterlace {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "deinterlace";
			linux,phandle = <0x80>;
			phandle = <0x80>;
		};

		csi_s {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "csi_s";
			linux,phandle = <0x77>;
			phandle = <0x77>;
		};

		csi_m {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "csi_m";
			linux,phandle = <0x78>;
			phandle = <0x78>;
		};

		csi_misc {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "csi_misc";
			linux,phandle = <0x79>;
			phandle = <0x79>;
		};

		ve {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "ve";
			linux,phandle = <0x17>;
			phandle = <0x17>;
		};

		adda {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "adda";
			linux,phandle = <0x45>;
			phandle = <0x45>;
		};

		addax4 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "addax4";
		};

		avs {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "avs";
		};

		hdmi {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			assigned-clock-parents = <0x3>;
			clock-output-names = "hdmi";
			linux,phandle = <0x73>;
			phandle = <0x73>;
		};

		hdmi_slow {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "hdmi_slow";
			linux,phandle = <0x74>;
			phandle = <0x74>;
		};

		mbus {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "mbus";
		};

		mipidsi {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "mipidsi";
			linux,phandle = <0x72>;
			phandle = <0x72>;
		};

		gpu {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "gpu";
			linux,phandle = <0x9b>;
			phandle = <0x9b>;
		};

		usbehci_16 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "usbohci_16";
		};

		usbehci1 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "usbehci1";
			linux,phandle = <0x39>;
			phandle = <0x39>;
		};

		usbehci0 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "usbehci0";
			linux,phandle = <0x34>;
			phandle = <0x34>;
		};

		usbotg {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "usbotg";
			linux,phandle = <0x33>;
			phandle = <0x33>;
		};

		gmac {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "gmac";
			linux,phandle = <0x93>;
			phandle = <0x93>;
		};

		sdram {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "sdram";
		};

		dma {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "dma";
			linux,phandle = <0xb>;
			phandle = <0xb>;
		};

		hwspinlock_rst {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "hwspinlock_rst";
			linux,phandle = <0xf>;
			phandle = <0xf>;
		};

		hwspinlock_bus {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "hwspinlock_bus";
			linux,phandle = <0x10>;
			phandle = <0x10>;
		};

		msgbox {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "msgbox";
			linux,phandle = <0xe>;
			phandle = <0xe>;
		};

		lvds {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "lvds";
			linux,phandle = <0x71>;
			phandle = <0x71>;
		};

		uart0 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "uart0";
			linux,phandle = <0x18>;
			phandle = <0x18>;
		};

		uart1 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "uart1";
			linux,phandle = <0x1b>;
			phandle = <0x1b>;
		};

		uart2 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "uart2";
			linux,phandle = <0x1e>;
			phandle = <0x1e>;
		};

		uart3 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "uart3";
			linux,phandle = <0x21>;
			phandle = <0x21>;
		};

		uart4 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "uart4";
			linux,phandle = <0x24>;
			phandle = <0x24>;
		};

		scr {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "scr";
			linux,phandle = <0x81>;
			phandle = <0x81>;
		};

		twi0 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "twi0";
			linux,phandle = <0x27>;
			phandle = <0x27>;
		};

		twi1 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "twi1";
			linux,phandle = <0x2a>;
			phandle = <0x2a>;
		};

		twi2 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "twi2";
			linux,phandle = <0x2d>;
			phandle = <0x2d>;
		};

		twi3 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "twi3";
		};

		pio {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-clock";
			clock-output-names = "pio";
			linux,phandle = <0xa>;
			phandle = <0xa>;
		};

		cpurcir {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-cpus-clock";
			clock-output-names = "cpurcir";
			linux,phandle = <0x12>;
			phandle = <0x12>;
		};

		cpurpio {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-cpus-clock";
			clock-output-names = "cpurpio";
			linux,phandle = <0x9>;
			phandle = <0x9>;
		};

		cpurpll_peri0 {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-cpus-clock";
			clock-output-names = "cpurpll_peri0";
		};

		cpurcpus {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-cpus-clock";
			clock-output-names = "cpurcpus";
		};

		cpurahbs {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-cpus-clock";
			clock-output-names = "cpurahbs";
		};

		cpurapbs {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-cpus-clock";
			clock-output-names = "cpurapbs";
		};

		losc_out {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-cpus-clock";
			clock-output-names = "losc_out";
			linux,phandle = <0x9c>;
			phandle = <0x9c>;
		};

		adda_com {
			#clock-cells = <0x0>;
			compatible = "allwinner,sunxi-periph-cpus-clock";
			clock-output-names = "adda_com";
			linux,phandle = <0x40>;
			phandle = <0x40>;
		};
	};

	soc@01c00000 {
		compatible = "simple-bus";
		#address-cells = <0x2>;
		#size-cells = <0x2>;
		ranges;
		device_type = "soc";

		pinctrl@01f02c00 {
			compatible = "allwinner,sun50i-r-pinctrl";
			reg = <0x0 0x1f02c00 0x0 0x400>;
			interrupts = <0x0 0x2d 0x4>;
			clocks = <0x9>;
			device_type = "r_pio";
			gpio-controller;
			interrupt-controller;
			#interrupt-cells = <0x2>;
			#size-cells = <0x0>;
			#gpio-cells = <0x6>;
			linux,phandle = <0x7d>;
			phandle = <0x7d>;

			s_cir0@0 {
				allwinner,pins = "PL11";
				allwinner,function = "s_cir0";
				allwinner,muxsel = <0x2>;
				allwinner,drive = <0x2>;
				allwinner,pull = <0x1>;
				linux,phandle = <0x11>;
				phandle = <0x11>;
			};

			pwm16@0 {
				linux,phandle = <0xb5>;
				phandle = <0xb5>;
				allwinner,pins = "PL10";
				allwinner,function = "pwm16";
				allwinner,pname = "pwm_positive";
				allwinner,muxsel = <0x2>;
				allwinner,pull = <0x0>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0xffffffff>;
			};

			pwm16@1 {
				linux,phandle = <0xb6>;
				phandle = <0xb6>;
				allwinner,pins = "PL10";
				allwinner,function = "pwm16";
				allwinner,pname = "pwm_positive";
				allwinner,muxsel = <0x7>;
				allwinner,pull = <0x0>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0xffffffff>;
			};

			s_uart0@0 {
				linux,phandle = <0xbc>;
				phandle = <0xbc>;
				allwinner,pins = "PL2", "PL3";
				allwinner,function = "s_uart0";
				allwinner,pname = "s_uart0_tx", "s_uart0_rx";
				allwinner,muxsel = <0x2>;
				allwinner,pull = <0xffffffff>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0xffffffff>;
			};

			s_rsb0@0 {
				linux,phandle = <0xbd>;
				phandle = <0xbd>;
				allwinner,pins = "PL0", "PL1";
				allwinner,function = "s_rsb0";
				allwinner,pname = "s_rsb0_sck", "s_rsb0_sda";
				allwinner,muxsel = <0x2>;
				allwinner,pull = <0x1>;
				allwinner,drive = <0x2>;
				allwinner,data = <0xffffffff>;
			};

			s_jtag0@0 {
				linux,phandle = <0xbe>;
				phandle = <0xbe>;
				allwinner,pins = "PL4", "PL5", "PL6", "PL7";
				allwinner,function = "s_jtag0";
				allwinner,pname = "s_jtag0_tms", "s_jtag0_tck", "s_jtag0_tdo", "s_jtag0_tdi";
				allwinner,muxsel = <0x2>;
				allwinner,pull = <0x1>;
				allwinner,drive = <0x2>;
				allwinner,data = <0xffffffff>;
			};

			hall_para@0 {
				linux,phandle = <0xc0>;
				phandle = <0xc0>;
				allwinner,pins = "PL8";
				allwinner,function = "hall_para";
				allwinner,pname = "hall_int_port";
				allwinner,muxsel = <0x4>;
				allwinner,pull = <0xffffffff>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0x0>;
			};
		};

		pinctrl@01c20800 {
			compatible = "allwinner,sun50i-pinctrl";
			reg = <0x0 0x1c20800 0x0 0x400>;
			interrupts = <0x0 0xb 0x4 0x0 0x11 0x4 0x0 0x15 0x4>;
			device_type = "pio";
			clocks = <0xa>;
			gpio-controller;
			interrupt-controller;
			#interrupt-cells = <0x2>;
			#size-cells = <0x0>;
			#gpio-cells = <0x6>;
			linux,phandle = <0x30>;
			phandle = <0x30>;

			uart0@1 {
				allwinner,pins = "PB8", "PB9";
				allwinner,function = "io_disabled";
				allwinner,muxsel = <0x7>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x1>;
				linux,phandle = <0x1a>;
				phandle = <0x1a>;
			};

			uart1@1 {
				allwinner,pins = "PG6", "PG7", "PG8", "PG9";
				allwinner,function = "io_disabled";
				allwinner,muxsel = <0x7>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x1>;
				linux,phandle = <0x1d>;
				phandle = <0x1d>;
			};

			uart2@1 {
				allwinner,pins = "PB0", "PB1", "PB2", "PB3";
				allwinner,function = "io_disabled";
				allwinner,muxsel = <0x7>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x1>;
				linux,phandle = <0x20>;
				phandle = <0x20>;
			};

			uart3@1 {
				allwinner,pins = "PH4", "PH5", "PH6", "PH7";
				allwinner,function = "io_disabled";
				allwinner,muxsel = <0x7>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x1>;
				linux,phandle = <0x23>;
				phandle = <0x23>;
			};

			uart4@1 {
				allwinner,pins = "PD2", "PD3", "PD4", "PD5";
				allwinner,function = "io_disabled";
				allwinner,muxsel = <0x7>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x1>;
				linux,phandle = <0x26>;
				phandle = <0x26>;
			};

			twi0@1 {
				allwinner,pins = "PH0", "PH1";
				allwinner,function = "io_disabled";
				allwinner,muxsel = <0x7>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x0>;
				linux,phandle = <0x29>;
				phandle = <0x29>;
			};

			twi1@1 {
				allwinner,pins = "PH2", "PH3";
				allwinner,function = "io_disabled";
				allwinner,muxsel = <0x7>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x0>;
				linux,phandle = <0x2c>;
				phandle = <0x2c>;
			};

			twi2@1 {
				allwinner,pins = "PE14", "PE15";
				allwinner,function = "io_disabled";
				allwinner,muxsel = <0x7>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x0>;
				linux,phandle = <0x2f>;
				phandle = <0x2f>;
			};

			spi0@2 {
				allwinner,pins = "PC3", "PC2", "PC0", "PC1";
				allwinner,function = "io_disabled";
				allwinner,muxsel = <0x7>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x0>;
				linux,phandle = <0x59>;
				phandle = <0x59>;
			};

			spi1@2 {
				allwinner,pins = "PD0", "PD1", "PD2", "PD3";
				allwinner,function = "io_disabled";
				allwinner,muxsel = <0x7>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x0>;
				linux,phandle = <0x5d>;
				phandle = <0x5d>;
			};

			sdc0@1 {
				allwinner,pins = "PF0", "PF1", "PF2", "PF3", "PF4", "PF5";
				allwinner,function = "io_disabled";
				allwinner,muxsel = <0x7>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x1>;
				linux,phandle = <0x68>;
				phandle = <0x68>;
			};

			sdc1@1 {
				allwinner,pins = "PG0", "PG1", "PG2", "PG3", "PG4", "PG5";
				allwinner,function = "io_disabled";
				allwinner,muxsel = <0x7>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x1>;
				linux,phandle = <0x6d>;
				phandle = <0x6d>;
			};

			sdc2@1 {
				allwinner,pins = "PC1", "PC5", "PC6", "PC8", "PC9", "PC10", "PC11", "PC12", "PC13", "PC14", "PC15", "PC16";
				allwinner,function = "io_disabled";
				allwinner,muxsel = <0x7>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x1>;
				linux,phandle = <0x63>;
				phandle = <0x63>;
			};

			daudio0@0 {
				allwinner,pins = "PB6", "PB3", "PB4", "PB5", "PB7";
				allwinner,function = "pcm0";
				allwinner,muxsel = <0x3>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x0>;
				linux,phandle = <0x47>;
				phandle = <0x47>;
			};

			daudio0_sleep@0 {
				allwinner,pins = "PB6", "PB3", "PB4", "PB5", "PB7";
				allwinner,function = "io_disabled";
				allwinner,muxsel = <0x7>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x0>;
				linux,phandle = <0x48>;
				phandle = <0x48>;
			};

			daudio1@0 {
				allwinner,pins = "PG10", "PG11", "PG12", "PG13";
				allwinner,function = "pcm1";
				allwinner,muxsel = <0x3>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x0>;
				linux,phandle = <0x49>;
				phandle = <0x49>;
			};

			daudio1_sleep@0 {
				allwinner,pins = "PG10", "PG11", "PG12", "PG13";
				allwinner,function = "io_disabled";
				allwinner,muxsel = <0x7>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x0>;
				linux,phandle = <0x4a>;
				phandle = <0x4a>;
			};

			aif3@0 {
				allwinner,pins = "PG10", "PG11", "PG12", "PG13";
				allwinner,function = "aif3";
				allwinner,muxsel = <0x2>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x0>;
				linux,phandle = <0x42>;
				phandle = <0x42>;
			};

			aif2_sleep@0 {
				allwinner,pins = "PB6", "PB4", "PB5", "PB7";
				allwinner,function = "io_disabled";
				allwinner,muxsel = <0x7>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x0>;
				linux,phandle = <0x43>;
				phandle = <0x43>;
			};

			aif3_sleep@0 {
				allwinner,pins = "PG10", "PG11", "PG12", "PG13";
				allwinner,function = "io_disabled";
				allwinner,muxsel = <0x7>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x0>;
				linux,phandle = <0x44>;
				phandle = <0x44>;
			};

			spdif@0 {
				allwinner,pins = "PH8";
				allwinner,function = "spdif0";
				allwinner,muxsel = <0x2>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x0>;
				linux,phandle = <0x4e>;
				phandle = <0x4e>;
			};

			spdif_sleep@0 {
				allwinner,pins = "PH8";
				allwinner,function = "io_disabled";
				allwinner,muxsel = <0x7>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x0>;
				linux,phandle = <0x4f>;
				phandle = <0x4f>;
			};

			csi0_sleep@0 {
				allwinner,pins = "PE0", "PE2", "PE3", "PE4", "PE5", "PE6", "PE7", "PE8", "PE9", "PE10", "PE11", "PE12", "PE13";
				allwinner,pname = "csi0_pck", "csi0_hsync", "csi0_vsync", "csi0_d0", "csi0_d1", "csi0_d2", "csi0_d3", "csi0_d4", "csi0_d5", "csi0_d6", "csi0_d7", "csi0_sck", "csi0_sda";
				allwinner,function = "io_disabled";
				allwinner,muxsel = <0x7>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x0>;
				allwinner,data = <0x0>;
				linux,phandle = <0x7b>;
				phandle = <0x7b>;
			};

			smartcard@0 {
				allwinner,pins = "PB1", "PB4", "PB5", "PB6", "PB7";
				allwinner,function = "sim0";
				allwinner,muxsel = <0x5>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x1>;
				linux,phandle = <0x83>;
				phandle = <0x83>;
			};

			nand0@2 {
				allwinner,pins = "PC0", "PC1", "PC2", "PC3", "PC4", "PC5", "PC6", "PC7", "PC8", "PC9", "PC10", "PC11", "PC12", "PC13", "PC14", "PC15", "PC16", "PC17", "PC18";
				allwinner,function = "io_disabled";
				allwinner,muxsel = <0x7>;
				allwinner,drive = <0x1>;
				allwinner,pull = <0x0>;
				linux,phandle = <0x87>;
				phandle = <0x87>;
			};

			gmac@0 {
				allwinner,pins = "PD8", "PD9", "PD10", "PD11", "PD12", "PD13", "PD14", "PD15", "PD16", "PD17", "PD18", "PD19", "PD20", "PD21", "PD22", "PD23";
				allwinner,function = "gmac0";
				allwinner,muxsel = <0x4>;
				allwinner,drive = <0x3>;
				allwinner,pull = <0x0>;
				linux,phandle = <0x92>;
				phandle = <0x92>;
			};

			card0_boot_para@0 {
				linux,phandle = <0x9d>;
				phandle = <0x9d>;
				allwinner,pins = "PF0", "PF1", "PF2", "PF3", "PF4", "PF5";
				allwinner,function = "card0_boot_para";
				allwinner,pname = "sdc_d1", "sdc_d0", "sdc_clk", "sdc_cmd", "sdc_d3", "sdc_d2";
				allwinner,muxsel = <0x2>;
				allwinner,pull = <0x1>;
				allwinner,drive = <0x2>;
				allwinner,data = <0xffffffff>;
			};

			card2_boot_para@0 {
				linux,phandle = <0x9e>;
				phandle = <0x9e>;
				allwinner,pins = "PC1", "PC5", "PC6", "PC8", "PC9", "PC10", "PC11", "PC12", "PC13", "PC14", "PC15", "PC16";
				allwinner,function = "card2_boot_para";
				allwinner,pname = "sdc_ds", "sdc_clk", "sdc_cmd", "sdc_d0", "sdc_d1", "sdc_d2", "sdc_d3", "sdc_d4", "sdc_d5", "sdc_d6", "sdc_d7", "sdc_emmc_rst";
				allwinner,muxsel = <0x3>;
				allwinner,pull = <0x1>;
				allwinner,drive = <0x3>;
				allwinner,data = <0xffffffff>;
			};

			twi_para@0 {
				linux,phandle = <0x9f>;
				phandle = <0x9f>;
				allwinner,pins = "PH0", "PH1";
				allwinner,function = "twi_para";
				allwinner,pname = "twi_scl", "twi_sda";
				allwinner,muxsel = <0x2>;
				allwinner,pull = <0xffffffff>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0xffffffff>;
			};

			uart_para@0 {
				linux,phandle = <0xa0>;
				phandle = <0xa0>;
				allwinner,pins = "PB8", "PB9";
				allwinner,function = "uart_para";
				allwinner,pname = "uart_debug_tx", "uart_debug_rx";
				allwinner,muxsel = <0x4>;
				allwinner,pull = <0x1>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0xffffffff>;
			};

			jtag_para@0 {
				linux,phandle = <0xa1>;
				phandle = <0xa1>;
				allwinner,pins = "PB0", "PB1", "PB2", "PB3";
				allwinner,function = "jtag_para";
				allwinner,pname = "jtag_ms", "jtag_ck", "jtag_do", "jtag_di";
				allwinner,muxsel = <0x4>;
				allwinner,pull = <0xffffffff>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0xffffffff>;
			};

			gmac_para@0 {
				linux,phandle = <0xa2>;
				phandle = <0xa2>;
				allwinner,pins = "PA0", "PA1", "PA2", "PA3", "PA4", "PA5", "PA6", "PA7", "PA8", "PA9", "PA10", "PA11", "PA12", "PA13", "PA14", "PA15", "PA16", "PA17", "PA18", "PA19", "PA20", "PA21", "PA22", "PA23", "PA24", "PA25", "PA26", "PA27";
				allwinner,function = "gmac_para";
				allwinner,pname = "gmac_txd0", "gmac_txd1", "gmac_txd2", "gmac_txd3", "gmac_txd4", "gmac_txd5", "gmac_txd6", "gmac_txd7", "gmac_txclk", "gmac_txen", "gmac_gtxclk", "gmac_rxd0", "gmac_rxd1", "gmac_rxd2", "gmac_rxd3", "gmac_rxd4", "gmac_rxd5", "gmac_rxd6", "gmac_rxd7", "gmac_rxdv", "gmac_rxclk", "gmac_txerr", "gmac_rxerr", "gmac_col", "gmac_crs", "gmac_clkin", "gmac_mdc", "gmac_mdio";
				allwinner,muxsel = <0x2>;
				allwinner,pull = <0xffffffff>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0xffffffff>;
			};

			twi0@0 {
				linux,phandle = <0xa3>;
				phandle = <0xa3>;
				allwinner,pins = "PH0", "PH1";
				allwinner,function = "twi0";
				allwinner,pname = "twi0_scl", "twi0_sda";
				allwinner,muxsel = <0x2>;
				allwinner,pull = <0xffffffff>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0xffffffff>;
			};

			twi1@0 {
				linux,phandle = <0xa4>;
				phandle = <0xa4>;
				allwinner,pins = "PH2", "PH3";
				allwinner,function = "twi1";
				allwinner,pname = "twi1_scl", "twi1_sda";
				allwinner,muxsel = <0x2>;
				allwinner,pull = <0xffffffff>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0xffffffff>;
			};

			twi2@0 {
				linux,phandle = <0xa5>;
				phandle = <0xa5>;
				allwinner,pins = "PE14", "PE15";
				allwinner,function = "twi2";
				allwinner,pname = "twi2_scl", "twi2_sda";
				allwinner,muxsel = <0x3>;
				allwinner,pull = <0xffffffff>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0xffffffff>;
			};

			uart0@0 {
				linux,phandle = <0xa6>;
				phandle = <0xa6>;
				allwinner,pins = "PB8", "PB9";
				allwinner,function = "uart0";
				allwinner,pname = "uart0_tx", "uart0_rx";
				allwinner,muxsel = <0x4>;
				allwinner,pull = <0x1>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0xffffffff>;
			};

			uart1@0 {
				linux,phandle = <0xa7>;
				phandle = <0xa7>;
				allwinner,pins = "PG6", "PG7", "PG8", "PG9";
				allwinner,function = "uart1";
				allwinner,pname = "uart1_tx", "uart1_rx", "uart1_rts", "uart1_cts";
				allwinner,muxsel = <0x2>;
				allwinner,pull = <0x1>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0xffffffff>;
			};

			uart2@0 {
				linux,phandle = <0xa8>;
				phandle = <0xa8>;
				allwinner,pins = "PB0", "PB1", "PB2", "PB3";
				allwinner,function = "uart2";
				allwinner,pname = "uart2_tx", "uart2_rx", "uart2_rts", "uart2_cts";
				allwinner,muxsel = <0x2>;
				allwinner,pull = <0x1>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0xffffffff>;
			};

			uart3@0 {
				linux,phandle = <0xa9>;
				phandle = <0xa9>;
				allwinner,pins = "PH4", "PH5", "PH6", "PH7";
				allwinner,function = "uart3";
				allwinner,pname = "uart3_tx", "uart3_rx", "uart3_rts", "uart3_cts";
				allwinner,muxsel = <0x2>;
				allwinner,pull = <0x1>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0xffffffff>;
			};

			uart4@0 {
				linux,phandle = <0xaa>;
				phandle = <0xaa>;
				allwinner,pins = "PD2", "PD3", "PD4", "PD5";
				allwinner,function = "uart4";
				allwinner,pname = "uart4_tx", "uart4_rx", "uart4_rts", "uart4_cts";
				allwinner,muxsel = <0x3>;
				allwinner,pull = <0x1>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0xffffffff>;
			};

			spi0@0 {
				linux,phandle = <0xab>;
				phandle = <0xab>;
				allwinner,pins = "PC3";
				allwinner,function = "spi0";
				allwinner,pname = "spi0_cs0";
				allwinner,muxsel = <0x4>;
				allwinner,pull = <0x1>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0xffffffff>;
			};

			spi0@1 {
				linux,phandle = <0xac>;
				phandle = <0xac>;
				allwinner,pins = "PC2", "PC0", "PC1";
				allwinner,function = "spi0";
				allwinner,pname = "spi0_sclk", "spi0_mosi", "spi0_miso";
				allwinner,muxsel = <0x4>;
				allwinner,pull = <0xffffffff>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0xffffffff>;
			};

			spi1@0 {
				linux,phandle = <0xad>;
				phandle = <0xad>;
				allwinner,pins = "PD0";
				allwinner,function = "spi1";
				allwinner,pname = "spi1_cs0";
				allwinner,muxsel = <0x4>;
				allwinner,pull = <0x1>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0xffffffff>;
			};

			spi1@1 {
				linux,phandle = <0xae>;
				phandle = <0xae>;
				allwinner,pins = "PD1", "PD2", "PD3";
				allwinner,function = "spi1";
				allwinner,pname = "spi1_sclk", "spi1_mosi", "spi1_miso";
				allwinner,muxsel = <0x4>;
				allwinner,pull = <0xffffffff>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0xffffffff>;
			};

			nand0@0 {
				linux,phandle = <0xaf>;
				phandle = <0xaf>;
				allwinner,pins = "PC0", "PC1", "PC2", "PC5", "PC8", "PC9", "PC10", "PC11", "PC12", "PC13", "PC14", "PC15", "PC16";
				allwinner,function = "nand0";
				allwinner,pname = "nand0_we", "nand0_ale", "nand0_cle", "nand0_nre", "nand0_d0", "nand0_d1", "nand0_d2", "nand0_d3", "nand0_d4", "nand0_d5", "nand0_d6", "nand0_d7", "nand0_ndqs";
				allwinner,muxsel = <0x2>;
				allwinner,pull = <0x0>;
				allwinner,drive = <0x1>;
				allwinner,data = <0xffffffff>;
			};

			nand0@1 {
				linux,phandle = <0xb0>;
				phandle = <0xb0>;
				allwinner,pins = "PC3", "PC4", "PC6", "PC7", "PC17", "PC18";
				allwinner,function = "nand0";
				allwinner,pname = "nand0_ce1", "nand0_ce0", "nand0_rb0", "nand0_rb1", "nand0_ce2", "nand0_ce3";
				allwinner,muxsel = <0x2>;
				allwinner,pull = <0x1>;
				allwinner,drive = <0x1>;
				allwinner,data = <0xffffffff>;
			};

			lcd0@0 {
				linux,phandle = <0xb1>;
				phandle = <0xb1>;
				allwinner,pins = "PD0", "PD1", "PD2", "PD3", "PD4", "PD5", "PD6", "PD7", "PD8", "PD9", "PD10", "PD11", "PD12", "PD13", "PD14", "PD15", "PD16", "PD17", "PD19", "PD20", "PD21";
				allwinner,function = "lcd0";
				allwinner,pname = "lcdd2", "lcdd3", "lcdd4", "lcdd5", "lcdd6", "lcdd7", "lcdd10", "lcdd11", "lcdd12", "lcdd13", "lcdd14", "lcdd15", "lcdd18", "lcdd19", "lcdd20", "lcdd21", "lcdd22", "lcdd23", "lcdde", "lcdhsync", "lcdvsync";
				allwinner,muxsel = <0x2>;
				allwinner,pull = <0x0>;
				allwinner,drive = <0x0>;
				allwinner,data = <0xffffffff>;
			};

			lcd0@1 {
				linux,phandle = <0xb2>;
				phandle = <0xb2>;
				allwinner,pins = "PD18";
				allwinner,function = "lcd0";
				allwinner,pname = "lcdclk";
				allwinner,muxsel = <0x2>;
				allwinner,pull = <0x0>;
				allwinner,drive = <0x3>;
				allwinner,data = <0xffffffff>;
			};

			pwm0@0 {
				linux,phandle = <0xb3>;
				phandle = <0xb3>;
				allwinner,pins = "PD22";
				allwinner,function = "pwm0";
				allwinner,pname = "pwm_positive";
				allwinner,muxsel = <0x2>;
				allwinner,pull = <0x0>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0xffffffff>;
			};

			pwm0@1 {
				linux,phandle = <0xb4>;
				phandle = <0xb4>;
				allwinner,pins = "PD22";
				allwinner,function = "pwm0";
				allwinner,pname = "pwm_positive";
				allwinner,muxsel = <0x7>;
				allwinner,pull = <0x0>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0xffffffff>;
			};

			csi0@0 {
				linux,phandle = <0xb7>;
				phandle = <0xb7>;
				allwinner,pins = "PE0", "PE2", "PE3", "PE4", "PE5", "PE6", "PE7", "PE8", "PE9", "PE10", "PE11", "PE12", "PE13";
				allwinner,function = "csi0";
				allwinner,pname = "csi0_pck", "csi0_hsync", "csi0_vsync", "csi0_d0", "csi0_d1", "csi0_d2", "csi0_d3", "csi0_d4", "csi0_d5", "csi0_d6", "csi0_d7", "csi0_sck", "csi0_sda";
				allwinner,muxsel = <0x2>;
				allwinner,pull = <0xffffffff>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0xffffffff>;
			};

			sdc0@0 {
				linux,phandle = <0xb8>;
				phandle = <0xb8>;
				allwinner,pins = "PF0", "PF1", "PF2", "PF3", "PF4", "PF5";
				allwinner,function = "sdc0";
				allwinner,pname = "sdc0_d1", "sdc0_d0", "sdc0_clk", "sdc0_cmd", "sdc0_d3", "sdc0_d2";
				allwinner,muxsel = <0x2>;
				allwinner,pull = <0x1>;
				allwinner,drive = <0x2>;
				allwinner,data = <0xffffffff>;
			};

			sdc1@0 {
				linux,phandle = <0xb9>;
				phandle = <0xb9>;
				allwinner,pins = "PG0", "PG1", "PG2", "PG3", "PG4", "PG5";
				allwinner,function = "sdc1";
				allwinner,pname = "sdc1_clk", "sdc1_cmd", "sdc1_d0", "sdc1_d1", "sdc1_d2", "sdc1_d3";
				allwinner,muxsel = <0x2>;
				allwinner,pull = <0x1>;
				allwinner,drive = <0x3>;
				allwinner,data = <0xffffffff>;
			};

			sdc2@0 {
				linux,phandle = <0xba>;
				phandle = <0xba>;
				allwinner,pins = "PC1", "PC5", "PC6", "PC8", "PC9", "PC10", "PC11", "PC12", "PC13", "PC14", "PC15", "PC16";
				allwinner,function = "sdc2";
				allwinner,pname = "sdc2_ds", "sdc2_clk", "sdc2_cmd", "sdc2_d0", "sdc2_d1", "sdc2_d2", "sdc2_d3", "sdc2_d4", "sdc2_d5", "sdc2_d6", "sdc2_d7", "sdc2_emmc_rst";
				allwinner,muxsel = <0x3>;
				allwinner,pull = <0x1>;
				allwinner,drive = <0x3>;
				allwinner,data = <0xffffffff>;
			};

			codec@0 {
				linux,phandle = <0xbb>;
				phandle = <0xbb>;
				allwinner,pins = "PH7";
				allwinner,function = "codec";
				allwinner,pname = "gpio-spk";
				allwinner,muxsel = <0x2>;
				allwinner,pull = <0x1>;
				allwinner,drive = <0xffffffff>;
				allwinner,data = <0xffffffff>;
			};

			Vdevice@0 {
				linux,phandle = <0xbf>;
				phandle = <0xbf>;
				allwinner,pins = "PB1", "PB2";
				allwinner,function = "Vdevice";
				allwinner,pname = "Vdevice_0", "Vdevice_1";
				allwinner,muxsel = <0x4>;
				allwinner,pull = <0x1>;
				allwinner,drive = <0x2>;
				allwinner,data = <0xffffffff>;
			};
		};

		pinctrl@0 {
			compatible = "allwinner,axp-pinctrl";
			gpio-controller;
			#size-cells = <0x0>;
			#gpio-cells = <0x6>;
			device_type = "axp_pio";
			linux,phandle = <0x31>;
			phandle = <0x31>;
		};

		dma-controller@01c02000 {
			compatible = "allwinner,sun50i-dma";
			reg = <0x0 0x1c02000 0x0 0x1000>;
			interrupts = <0x0 0x32 0x4>;
			clocks = <0xb>;
			#dma-cells = <0x1>;
		};

		mbus-controller@01c62000 {
			compatible = "allwinner,sun50i-mbus";
			reg = <0x0 0x1c62000 0x0 0x110>;
			#mbus-cells = <0x1>;
		};

		arisc {
			compatible = "allwinner,sunxi-arisc";
			#address-cells = <0x2>;
			#size-cells = <0x2>;
			clocks = <0xc 0xd 0x6 0x4>;
			clock-names = "losc", "iosc", "hosc", "pll_periph0";
			powchk_used = <0x0>;
			power_reg = <0x2309621>;
			system_power = <0x32>;
		};

		arisc_space {
			compatible = "allwinner,arisc_space";
			space1 = <0x40000 0x0 0x14000>;
			space2 = <0x40100000 0x18000 0x4000>;
			space3 = <0x40104000 0x0 0x1000>;
			space4 = <0x40105000 0x0 0x1000>;
		};

		standby_space {
			compatible = "allwinner,standby_space";
			space1 = <0x41020000 0x0 0x800>;
		};

		msgbox@1c17000 {
			compatible = "allwinner,msgbox";
			clocks = <0xe>;
			clock-names = "clk_msgbox";
			reg = <0x0 0x1c17000 0x0 0x1000>;
			interrupts = <0x0 0x31 0x1>;
			status = "okay";
		};

		hwspinlock@1c18000 {
			compatible = "allwinner,sunxi-hwspinlock";
			clocks = <0xf 0x10>;
			clock-names = "clk_hwspinlock_rst", "clk_hwspinlock_bus";
			reg = <0x0 0x1c18000 0x0 0x1000>;
			status = "okay";
			num-locks = <0x8>;
		};

		s_cir@1f02000 {
			compatible = "allwinner,s_cir";
			reg = <0x0 0x1f02000 0x0 0x400>;
			interrupts = <0x0 0x25 0x4>;
			pinctrl-names = "default";
			pinctrl-0 = <0x11>;
			clocks = <0x6 0x12>;
			supply = "vcc-pl";
			supply_vol = <0x325aa0>;
			status = "disabled";
			device_type = "s_cir0";
			ir_power_key_code = <0x0>;
			ir_addr_code = <0x0>;
		};

		s_uart@1f02800 {
			compatible = "allwinner,s_uart";
			reg = <0x0 0x1f02800 0x0 0x400>;
			interrupts = <0x0 0x26 0x4>;
			pinctrl-names = "default";
			status = "okay";
			device_type = "s_uart0";
			pinctrl-0 = <0xbc>;
		};

		s_rsb@1f03400 {
			compatible = "allwinner,s_rsb";
			reg = <0x0 0x1f03400 0x0 0x400>;
			interrupts = <0x0 0x27 0x4>;
			pinctrl-names = "default";
			status = "okay";
			device_type = "s_rsb0";
			pinctrl-0 = <0xbd>;
		};

		s_jtag0 {
			compatible = "allwinner,s_jtag";
			pinctrl-names = "default";
			status = "disabled";
			device_type = "s_jtag0";
			pinctrl-0 = <0xbe>;
		};

		timer@1c20c00 {
			compatible = "allwinner,sunxi-timer";
			device_type = "timer";
			reg = <0x0 0x1c20c00 0x0 0x90>;
			interrupts = <0x0 0x12 0x1>;
			clock-frequency = <0x16e3600>;
			timer-prescale = <0x10>;
		};

		rtc@01f00000 {
			compatible = "allwinner,sun50i-rtc";
			device_type = "rtc";
			reg = <0x0 0x1f00000 0x0 0x218>;
			interrupts = <0x0 0x28 0x4>;
			gpr_offset = <0x100>;
			gpr_len = <0x4>;
		};

		ve@01c0e000 {
			compatible = "allwinner,sunxi-cedar-ve";
			reg = <0x0 0x1c0e000 0x0 0x1000 0x0 0x1c00000 0x0 0x10 0x0 0x1c20000 0x0 0x800>;
			interrupts = <0x0 0x3a 0x4>;
			clocks = <0x16 0x17>;
		};

		uart@01c28000 {
			compatible = "allwinner,sun50i-uart";
			device_type = "uart0";
			reg = <0x0 0x1c28000 0x0 0x400>;
			interrupts = <0x0 0x0 0x4>;
			clocks = <0x18>;
			pinctrl-names = "default", "sleep";
			pinctrl-1 = <0x1a>;
			uart0_port = <0x0>;
			uart0_type = <0x2>;
			status = "okay";
			pinctrl-0 = <0xa6>;
		};

		uart@01c28400 {
			compatible = "allwinner,sun50i-uart";
			device_type = "uart1";
			reg = <0x0 0x1c28400 0x0 0x400>;
			interrupts = <0x0 0x1 0x4>;
			clocks = <0x1b>;
			pinctrl-names = "default", "sleep";
			pinctrl-1 = <0x1d>;
			uart1_port = <0x1>;
			uart1_type = <0x4>;
			status = "okay";
			pinctrl-0 = <0xa7>;
		};

		uart@01c28800 {
			compatible = "allwinner,sun50i-uart";
			device_type = "uart2";
			reg = <0x0 0x1c28800 0x0 0x400>;
			interrupts = <0x0 0x2 0x4>;
			clocks = <0x1e>;
			pinctrl-names = "default", "sleep";
			pinctrl-1 = <0x20>;
			uart2_port = <0x2>;
			uart2_type = <0x4>;
			status = "disabled";
			pinctrl-0 = <0xa8>;
		};

		uart@01c28c00 {
			compatible = "allwinner,sun50i-uart";
			device_type = "uart3";
			reg = <0x0 0x1c28c00 0x0 0x400>;
			interrupts = <0x0 0x3 0x4>;
			clocks = <0x21>;
			pinctrl-names = "default", "sleep";
			pinctrl-1 = <0x23>;
			uart3_port = <0x3>;
			uart3_type = <0x4>;
			status = "disabled";
			pinctrl-0 = <0xa9>;
		};

		uart@01c29000 {
			compatible = "allwinner,sun50i-uart";
			device_type = "uart4";
			reg = <0x0 0x1c29000 0x0 0x400>;
			interrupts = <0x0 0x4 0x4>;
			clocks = <0x24>;
			pinctrl-names = "default", "sleep";
			pinctrl-1 = <0x26>;
			uart4_port = <0x4>;
			uart4_type = <0x4>;
			status = "disabled";
			pinctrl-0 = <0xaa>;
		};

		twi@0x01c2ac00 {
			#address-cells = <0x1>;
			#size-cells = <0x0>;
			compatible = "allwinner,sun50i-twi";
			device_type = "twi0";
			reg = <0x0 0x1c2ac00 0x0 0x400>;
			interrupts = <0x0 0x6 0x4>;
			clocks = <0x27>;
			clock-frequency = <0x61a80>;
			pinctrl-names = "default", "sleep";
			pinctrl-1 = <0x29>;
			status = "okay";
			pinctrl-0 = <0xa3>;
		};

		twi@0x01c2b000 {
			#address-cells = <0x1>;
			#size-cells = <0x0>;
			compatible = "allwinner,sun50i-twi";
			device_type = "twi1";
			reg = <0x0 0x1c2b000 0x0 0x400>;
			interrupts = <0x0 0x7 0x4>;
			clocks = <0x2a>;
			clock-frequency = <0x30d40>;
			pinctrl-names = "default", "sleep";
			pinctrl-1 = <0x2c>;
			status = "okay";
			pinctrl-0 = <0xa4>;
		};

		twi@0x01c2b400 {
			#address-cells = <0x1>;
			#size-cells = <0x0>;
			compatible = "allwinner,sun50i-twi";
			device_type = "twi2";
			reg = <0x0 0x1c2b400 0x0 0x400>;
			interrupts = <0x0 0x8 0x4>;
			clocks = <0x2d>;
			clock-frequency = <0x30d40>;
			pinctrl-names = "default", "sleep";
			pinctrl-1 = <0x2f>;
			status = "disabled";
			pinctrl-0 = <0xa5>;
		};

		usbc0@0 {
			device_type = "usbc0";
			compatible = "allwinner,sunxi-otg-manager";
			usb_port_type = <0x2>;
			usb_detect_type = <0x1>;
			usb_det_vbus_gpio = "axp_ctrl";
			usb_host_init_state = <0x0>;
			usb_regulator_io = "nocare";
			usb_wakeup_suspend = <0x0>;
			usb_luns = <0x3>;
			usb_serial_unique = <0x1>;
			usb_serial_number = "20080411";
			rndis_wceis = <0x1>;
			status = "okay";
			usb_id_gpio = <0x30 0x7 0x9 0x0 0x1 0xffffffff 0xffffffff>;
			usb_drv_vbus_gpio = <0x31 0xfffe 0x3 0x1 0x0 0xffffffff 0x0>;
		};

		udc-controller@0x01c19000 {
			compatible = "allwinner,sunxi-udc";
			reg = <0x0 0x1c19000 0x0 0x1000 0x0 0x1c00000 0x0 0x100>;
			interrupts = <0x0 0x47 0x4>;
			clocks = <0x32 0x33>;
			status = "okay";
		};

		ehci0-controller@0x01c1a000 {
			compatible = "allwinner,sunxi-ehci0";
			reg = <0x0 0x1c1a000 0x0 0xfff 0x0 0x1c00000 0x0 0x100 0x0 0x1c19000 0x0 0x1000>;
			interrupts = <0x0 0x48 0x4>;
			clocks = <0x32 0x34>;
			hci_ctrl_no = <0x0>;
			status = "okay";
		};

		ohci0-controller@0x01c1a400 {
			compatible = "allwinner,sunxi-ohci0";
			reg = <0x0 0x1c1a000 0x0 0xfff 0x0 0x1c00000 0x0 0x100 0x0 0x1c19000 0x0 0x1000>;
			interrupts = <0x0 0x49 0x4>;
			clocks = <0x32 0x35 0x36 0x37 0x6 0xc>;
			hci_ctrl_no = <0x0>;
			status = "okay";
		};

		usbc1@0 {
			device_type = "usbc1";
			usb_host_init_state = <0x1>;
			usb_regulator_io = "nocare";
			usb_wakeup_suspend = <0x0>;
			usb_hsic_used = <0x0>;
			usb_hsic_regulator_io = "vcc-hsic-12";
			usb_hsic_ctrl = <0x0>;
			usb_hsic_usb3503_flag = <0x0>;
			status = "okay";
			usb_drv_vbus_gpio = <0x30 0x1 0x8 0x1 0x0 0xffffffff 0x0>;
			usb_hsic_rdy_gpio;
			usb_hsic_hub_connect_gpio;
			usb_hsic_int_n_gpio;
			usb_hsic_reset_n_gpio;
		};

		ehci1-controller@0x01c1b000 {
			compatible = "allwinner,sunxi-ehci1";
			reg = <0x0 0x1c1b000 0x0 0xfff 0x0 0x1c00000 0x0 0x100 0x0 0x1c19000 0x0 0x1000>;
			interrupts = <0x0 0x4a 0x4>;
			clocks = <0x38 0x39 0x3a 0x3b 0x3c>;
			hci_ctrl_no = <0x1>;
			status = "okay";
		};

		ohci1-controller@0x01c1b400 {
			compatible = "allwinner,sunxi-ohci1";
			reg = <0x0 0x1c1b000 0x0 0xfff 0x0 0x1c00000 0x0 0x100 0x0 0x1c19000 0x0 0x1000>;
			interrupts = <0x0 0x4b 0x4>;
			clocks = <0x38 0x3d 0x3e 0x37 0x6 0xc>;
			hci_ctrl_no = <0x1>;
			status = "okay";
		};

		codec@0x01c22c00 {
			compatible = "allwinner,sunxi-internal-codec";
			reg = <0x0 0x1c22c00 0x0 0x478 0x0 0x1f015c0 0x0 0x0>;
			clocks = <0x3f 0x40>;
			pinctrl-names = "aif2-default", "aif3-default", "aif2-sleep", "aif3-sleep";
			pinctrl-1 = <0x42>;
			pinctrl-2 = <0x43>;
			pinctrl-3 = <0x44>;
			gpio-spk = <0x30 0x7 0x7 0x1 0x1 0x1 0x1>;
			headphonevol = <0x38>;
			spkervol = <0x1d>;
			earpiecevol = <0x1e>;
			maingain = <0x6>;
			headsetmicgain = <0x6>;
			adcagc_cfg = <0x0>;
			adcdrc_cfg = <0x0>;
			adchpf_cfg = <0x1>;
			dacdrc_cfg = <0x0>;
			dachpf_cfg = <0x0>;
			aif1_lrlk_div = <0x40>;
			aif2_lrlk_div = <0x40>;
			aif2config = <0x0>;
			aif3config = <0x0>;
			pa_sleep_time = <0xa>;
			dac_digital_vol = <0x9898>;
			status = "okay";
			linux,phandle = <0x51>;
			phandle = <0x51>;
			device_type = "codec";
			pinctrl-0 = <0xbb>;
		};

		i2s0-controller@0x01c22c00 {
			compatible = "allwinner,sunxi-internal-i2s";
			reg = <0x0 0x1c22c00 0x0 0x478>;
			clocks = <0x2 0x45>;
			status = "okay";
			linux,phandle = <0x50>;
			phandle = <0x50>;
			device_type = "i2s";
		};

		daudio@0x01c22000 {
			compatible = "allwinner,sunxi-daudio";
			reg = <0x0 0x1c22000 0x0 0x58>;
			clocks = <0x2 0x46>;
			pinctrl-names = "default", "sleep";
			pinctrl-0 = <0x47>;
			pinctrl-1 = <0x48>;
			pcm_lrck_period = <0x20>;
			pcm_lrckr_period = <0x1>;
			slot_width_select = <0x20>;
			pcm_lsb_first = <0x0>;
			tx_data_mode = <0x0>;
			rx_data_mode = <0x0>;
			daudio_master = <0x4>;
			audio_format = <0x1>;
			signal_inversion = <0x1>;
			frametype = <0x0>;
			tdm_config = <0x1>;
			tdm_num = <0x0>;
			status = "disabled";
			linux,phandle = <0x52>;
			phandle = <0x52>;
			device_type = "daudio0";
		};

		daudio@0x01c22400 {
			compatible = "allwinner,sunxi-daudio";
			reg = <0x0 0x1c22400 0x0 0x58>;
			pinctrl-names = "default", "sleep";
			pinctrl-0 = <0x49>;
			pinctrl-1 = <0x4a>;
			clocks = <0x2 0x4b>;
			pcm_lrck_period = <0x20>;
			pcm_lrckr_period = <0x1>;
			slot_width_select = <0x20>;
			pcm_lsb_first = <0x0>;
			tx_data_mode = <0x0>;
			rx_data_mode = <0x0>;
			daudio_master = <0x4>;
			audio_format = <0x1>;
			signal_inversion = <0x1>;
			frametype = <0x0>;
			tdm_config = <0x1>;
			tdm_num = <0x1>;
			status = "disabled";
			linux,phandle = <0x53>;
			phandle = <0x53>;
			device_type = "daudio1";
		};

		daudio@0x01c22800 {
			compatible = "allwinner,sunxi-tdmhdmi";
			reg = <0x0 0x1c22800 0x0 0x58>;
			clocks = <0x2 0x4c>;
			status = "okay";
			linux,phandle = <0x54>;
			phandle = <0x54>;
			device_type = "daudio2";
		};

		spdif-controller@0x01c21000 {
			compatible = "allwinner,sunxi-spdif";
			reg = <0x0 0x1c21000 0x0 0x38>;
			clocks = <0x2 0x4d>;
			pinctrl-names = "default", "sleep";
			pinctrl-0 = <0x4e>;
			pinctrl-1 = <0x4f>;
			status = "disabled";
			linux,phandle = <0x55>;
			phandle = <0x55>;
			device_type = "spdif";
		};

		sound@0 {
			compatible = "allwinner,sunxi-codec-machine";
			interrupts = <0x0 0x1c 0x4>;
			sunxi,i2s-controller = <0x50>;
			sunxi,audio-codec = <0x51>;
			aif2fmt = <0x3>;
			aif3fmt = <0x3>;
			aif2master = <0x1>;
			hp_detect_case = <0x0>;
			status = "okay";
			device_type = "sndcodec";
		};

		sound@1 {
			compatible = "allwinner,sunxi-daudio0-machine";
			sunxi,daudio0-controller = <0x52>;
			status = "disabled";
			device_type = "snddaudio0";
		};

		sound@2 {
			compatible = "allwinner,sunxi-daudio1-machine";
			sunxi,daudio1-controller = <0x53>;
			status = "disabled";
			device_type = "snddaudio1";
		};

		sound@3 {
			compatible = "allwinner,sunxi-hdmi-machine";
			sunxi,hdmi-controller = <0x54>;
			status = "okay";
			device_type = "sndhdmi";
		};

		sound@4 {
			compatible = "allwinner,sunxi-spdif-machine";
			sunxi,spdif-controller = <0x55>;
			status = "disabled";
			device_type = "sndspdif";
		};

		spi@01c68000 {
			#address-cells = <0x1>;
			#size-cells = <0x0>;
			compatible = "allwinner,sun50i-spi";
			device_type = "spi0";
			reg = <0x0 0x1c68000 0x0 0x1000>;
			interrupts = <0x0 0x41 0x4>;
			clocks = <0x4 0x56>;
			clock-frequency = <0x5f5e100>;
			pinctrl-names = "default", "sleep";
			pinctrl-1 = <0x59>;
			spi0_cs_number = <0x1>;
			spi0_cs_bitmap = <0x1>;
			status = "disabled";
			pinctrl-0 = <0xab 0xac>;
		};

		spi@01c69000 {
			#address-cells = <0x1>;
			#size-cells = <0x0>;
			compatible = "allwinner,sun50i-spi";
			device_type = "spi1";
			reg = <0x0 0x1c69000 0x0 0x1000>;
			interrupts = <0x0 0x42 0x4>;
			clocks = <0x4 0x5a>;
			clock-frequency = <0x5f5e100>;
			pinctrl-names = "default", "sleep";
			pinctrl-1 = <0x5d>;
			spi1_cs_number = <0x1>;
			spi1_cs_bitmap = <0x1>;
			status = "disabled";
			pinctrl-0 = <0xad 0xae>;
		};

		sdmmc@01C11000 {
			compatible = "allwinner,sun50i-sdmmc2";
			device_type = "sdc2";
			reg = <0x0 0x1c11000 0x0 0x1000>;
			interrupts = <0x0 0x3e 0x104>;
			clocks = <0x6 0x5e 0x5f 0x60 0x61>;
			clock-names = "osc24m", "pll_periph", "mmc", "ahb", "rst";
			pinctrl-names = "default", "sleep";
			pinctrl-1 = <0x63>;
			bus-width = <0x8>;
			max-frequency = <0x5f5e100>;
			sdc_tm4_sm0_freq0 = <0x0>;
			sdc_tm4_sm0_freq1 = <0x0>;
			sdc_tm4_sm1_freq0 = <0x0>;
			sdc_tm4_sm1_freq1 = <0x0>;
			sdc_tm4_sm2_freq0 = <0x0>;
			sdc_tm4_sm2_freq1 = <0x0>;
			sdc_tm4_sm3_freq0 = <0x5000000>;
			sdc_tm4_sm3_freq1 = <0x405>;
			sdc_tm4_sm4_freq0 = <0x50000>;
			sdc_tm4_sm4_freq1 = <0x408>;
			status = "okay";
			non-removable;
			pinctrl-0 = <0xba>;
			cd-gpios;
			sunxi-power-save-mode;
			sunxi-dis-signal-vol-sw;
			mmc-ddr-1_8v;
			mmc-hs200-1_8v;
			mmc-hs400-1_8v;
			vmmc = "vcc-emmcv";
			vqmmc = "vcc-emmcvq18";
			vdmmc = "none";
		};

		sdmmc@01c0f000 {
			compatible = "allwinner,sun50i-sdmmc0";
			device_type = "sdc0";
			reg = <0x0 0x1c0f000 0x0 0x1000>;
			interrupts = <0x0 0x3c 0x104>;
			clocks = <0x6 0x5e 0x64 0x65 0x66>;
			clock-names = "osc24m", "pll_periph", "mmc", "ahb", "rst";
			pinctrl-names = "default", "sleep";
			pinctrl-1 = <0x68>;
			max-frequency = <0x2faf080>;
			bus-width = <0x4>;
			broken-cd;
			status = "okay";
			pinctrl-0 = <0xb8>;
			cd-gpios = <0x30 0x5 0x6 0x0 0x1 0x2 0xffffffff>;
			sunxi-power-save-mode;
			sunxi-dis-signal-vol-sw;
			vmmc = "vcc-sdcv";
			vqmmc = "vcc-sdcvq33";
			vdmmc = "vcc-sdcvd";
		};

		sdmmc@1C10000 {
			compatible = "allwinner,sun50i-sdmmc1";
			device_type = "sdc1";
			reg = <0x0 0x1c10000 0x0 0x1000>;
			interrupts = <0x0 0x3d 0x104>;
			clocks = <0x6 0x5e 0x69 0x6a 0x6b>;
			clock-names = "osc24m", "pll_periph", "mmc", "ahb", "rst";
			pinctrl-names = "default", "sleep";
			pinctrl-1 = <0x6d>;
			max-frequency = <0x8f0d180>;
			bus-width = <0x4>;
			sunxi-dly-52M-ddr4 = <0x1 0x0 0x0 0x0 0x2>;
			sunxi-dly-104M = <0x1 0x0 0x0 0x0 0x1>;
			sunxi-dly-208M = <0x1 0x0 0x0 0x0 0x1>;
			status = "okay";
			pinctrl-0 = <0xb9>;
			sd-uhs-sdr50;
			sd-uhs-ddr50;
			sd-uhs-sdr104;
			cap-sdio-irq;
			keep-power-in-suspend;
			ignore-pm-notify;
		};

		disp@01000000 {
			compatible = "allwinner,sun50i-disp";
			reg = <0x0 0x1000000 0x0 0x300000 0x0 0x1c0c000 0x0 0x7fc 0x0 0x1c0d000 0x0 0x7fc 0x0 0x1ca0000 0x0 0x10fc>;
			interrupts = <0x0 0x56 0x104 0x0 0x57 0x104 0x0 0x59 0x104>;
			clocks = <0x6e 0x6f 0x70 0x71 0x72>;
			status = "okay";
			device_type = "disp";
			disp_init_enable = <0x1>;
			disp_mode = <0x0>;
			screen0_output_type = <0x1>;
			screen0_output_mode = <0x4>;
			screen1_output_type = <0x3>;
			screen1_output_mode = <0x4>;
			fb0_format = <0x0>;
			fb0_width = <0x0>;
			fb0_height = <0x0>;
			fb1_format = <0x0>;
			fb1_width = <0x0>;
			fb1_height = <0x0>;
		};

		lcd0@01c0c000 {
			compatible = "allwinner,sunxi-lcd0";
			pinctrl-names = "active", "sleep";
			status = "okay";
			device_type = "lcd0";
			lcd_used = <0x1>;
			lcd_driver_name = "anx9804_panel";
			lcd_model_name = <0x1>;
			lcd_backlight = <0x32>;
			lcd_if = <0x0>;
			lcd_x = <0x556>;
			lcd_y = <0x300>;
			lcd_width = <0x100>;
			lcd_height = <0x90>;
			lcd_dclk_freq = <0x4a>;
			lcd_pwm_used = <0x1>;
			lcd_pwm_ch = <0x0>;
			lcd_pwm_freq = <0xc350>;
			lcd_pwm_pol = <0x0>;
			lcd_pwm_max_limit = <0xff>;
			lcd_hbp = <0xe2>;
			lcd_ht = <0x6b0>;
			lcd_hspw = <0x32>;
			lcd_vbp = <0x20>;
			lcd_vt = <0x33c>;
			lcd_vspw = <0x6>;
			lcd_lvds_if = <0x0>;
			lcd_lvds_colordepth = <0x1>;
			lcd_lvds_mode = <0x0>;
			lcd_frm = <0x1>;
			lcd_hv_clk_phase = <0x0>;
			lcd_hv_sync_polarity = <0x0>;
			lcd_gamma_en = <0x0>;
			lcd_bright_curve_en = <0x0>;
			lcd_cmap_en = <0x0>;
			lcd_edp_tx_rate = <0x2>;
			lcd_edp_tx_lane = <0x1>;
			lcd_edp_colordepth = <0x0>;
			lcdgamma4iep = <0x16>;
			lcd_bl_en = <0x30 0x3 0x17 0x1 0x0 0xffffffff 0x1>;
			lcd_bl_en_power = "none";
			lcd_power = "vcc-lcd-0";
			lcd_power1 = "vcc-lcd-1";
			lcd_power2 = "vcc-lcd-2";
			lcd_fix_power = "vcc-dsi-33";
			lcd_gpio_0 = <0x30 0x3 0x18 0x1 0x0 0xffffffff 0x0>;
			lcd_gpio_1 = <0x30 0x1 0x6 0x1 0x0 0xffffffff 0x1>;
			lcd_gpio_2 = <0x30 0x1 0x4 0x1 0x0 0xffffffff 0x1>;
			pinctrl-0 = <0xb1 0xb2>;
			lcd_io_regulator = "vcc-pd";
		};

		hdmi@01ee0000 {
			compatible = "allwinner,sunxi-hdmi";
			reg = <0x0 0x1ee0000 0x0 0x20000>;
			clocks = <0x73 0x74>;
			device_type = "hdmi";
			status = "okay";
			hdmi_power = "vcc-hdmi-33";
			hdmi_hdcp_enable = <0x0>;
			hdmi_cts_compatibility = <0x0>;
		};

		tr@01000000 {
			compatible = "allwinner,sun50i-tr";
			reg = <0x0 0x1000000 0x0 0x200bc>;
			interrupts = <0x0 0x60 0x104>;
			clocks = <0x6e>;
			status = "okay";
		};

		pwm@01c21400 {
			compatible = "allwinner,sunxi-pwm";
			reg = <0x0 0x1c21400 0x0 0x3c>;
			pwm-number = <0x1>;
			pwm-base = <0x0>;
			pwms = <0x75>;
		};

		pwm0@01c21400 {
			compatible = "allwinner,sunxi-pwm0";
			pinctrl-names = "active", "sleep";
			reg_base = <0x1c21400>;
			reg_busy_offset = <0x0>;
			reg_busy_shift = <0x1c>;
			reg_enable_offset = <0x0>;
			reg_enable_shift = <0x4>;
			reg_clk_gating_offset = <0x0>;
			reg_clk_gating_shift = <0x6>;
			reg_bypass_offset = <0x0>;
			reg_bypass_shift = <0x9>;
			reg_pulse_start_offset = <0x0>;
			reg_pulse_start_shift = <0x8>;
			reg_mode_offset = <0x0>;
			reg_mode_shift = <0x7>;
			reg_polarity_offset = <0x0>;
			reg_polarity_shift = <0x5>;
			reg_period_offset = <0x4>;
			reg_period_shift = <0x10>;
			reg_period_width = <0x10>;
			reg_active_offset = <0x4>;
			reg_active_shift = <0x0>;
			reg_active_width = <0x10>;
			reg_prescal_offset = <0x0>;
			reg_prescal_shift = <0x0>;
			reg_prescal_width = <0x4>;
			linux,phandle = <0x75>;
			phandle = <0x75>;
			device_type = "pwm0";
			pwm_used = <0x1>;
			pinctrl-0 = <0xb3>;
			pinctrl-1 = <0xb4>;
		};

		s_pwm@1f03800 {
			compatible = "allwinner,sunxi-s_pwm";
			reg = <0x0 0x1f03800 0x0 0x3c>;
			pwm-number = <0x1>;
			pwm-base = <0x10>;
			pwms = <0x76>;
		};

		spwm0@0x01f03800 {
			compatible = "allwinner,sunxi-pwm16";
			pinctrl-names = "active", "sleep";
			reg_base = <0x1f03800>;
			reg_busy_offset = <0x0>;
			reg_busy_shift = <0x1c>;
			reg_enable_offset = <0x0>;
			reg_enable_shift = <0x4>;
			reg_clk_gating_offset = <0x0>;
			reg_clk_gating_shift = <0x6>;
			reg_bypass_offset = <0x0>;
			reg_bypass_shift = <0x9>;
			reg_pulse_start_offset = <0x0>;
			reg_pulse_start_shift = <0x8>;
			reg_mode_offset = <0x0>;
			reg_mode_shift = <0x7>;
			reg_polarity_offset = <0x0>;
			reg_polarity_shift = <0x5>;
			reg_period_offset = <0x4>;
			reg_period_shift = <0x10>;
			reg_period_width = <0x10>;
			reg_active_offset = <0x4>;
			reg_active_shift = <0x0>;
			reg_active_width = <0x10>;
			reg_prescal_offset = <0x0>;
			reg_prescal_shift = <0x0>;
			reg_prescal_width = <0x4>;
			linux,phandle = <0x76>;
			phandle = <0x76>;
		};

		boot_disp {
			compatible = "allwinner,boot_disp";
			device_type = "boot_disp";
			output_disp = <0x0>;
			output_type = <0x1>;
			output_mode = <0x4>;
		};

		ac200 {
			compatible = "allwinner,sunxi-ac200";
			clocks = <0x6f>;
			pinctrl-names = "active", "sleep";
			status = "okay";
		};

		cci@0x01cb3000 {
			compatible = "allwinner,sunxi-csi_cci";
			reg = <0x0 0x1cb3000 0x0 0x1000>;
			interrupts = <0x0 0x55 0x4>;
			status = "okay";
		};

		csi_res@0x01cb0000 {
			compatible = "allwinner,sunxi-csi";
			reg = <0x0 0x1cb0000 0x0 0x1000>;
			clocks = <0x77 0x78 0x79 0x4 0x6 0x5>;
			clocks-index = <0x0 0x1 0x2 0x3 0x4 0x5>;
			status = "okay";
		};

		mipi@0x01cb1000 {
			compatible = "allwinner,sunxi-mipi";
			reg = <0x0 0x1cb1000 0x0 0x1000>;
			clocks-index = <0xff 0xff 0xff 0xff>;
			status = "disabled";
		};

		isp@0x01cb8000 {
			compatible = "allwinner,sunxi-isp";
			reg = <0x0 0x1cb8000 0x0 0x1000>;
			status = "okay";
		};

		vfe@0 {
			device_type = "csi0";
			compatible = "allwinner,sunxi-vfe";
			interrupts = <0x0 0x54 0x4>;
			pinctrl-names = "default", "sleep";
			pinctrl-1 = <0x7b>;
			cci_sel = <0x0>;
			csi_sel = <0x0>;
			mipi_sel = <0x0>;
			isp_sel = <0x0>;
			csi0_sensor_list = <0x0>;
			status = "disabled";
			pinctrl-0 = <0xb7>;
			csi0_mck = <0x30 0x4 0x1 0x0 0x0 0x1 0x0>;

			dev@0 {
				csi0_dev0_mname = "gc2145";
				csi0_dev0_twi_addr = <0x78>;
				csi0_dev0_pos = "rear";
				csi0_dev0_isp_used = <0x1>;
				csi0_dev0_fmt = <0x0>;
				csi0_dev0_stby_mode = <0x1>;
				csi0_dev0_vflip = <0x0>;
				csi0_dev0_hflip = <0x0>;
				csi0_dev0_iovdd = "iovdd-csi";
				csi0_dev0_iovdd_vol = <0x2ab980>;
				csi0_dev0_avdd = "avdd-csi";
				csi0_dev0_avdd_vol = <0x2ab980>;
				csi0_dev0_dvdd = "dvdd-csi-18";
				csi0_dev0_dvdd_vol = <0x1b7740>;
				csi0_dev0_flash_used = <0x0>;
				csi0_dev0_flash_type = <0x2>;
				csi0_dev0_flvdd = "vdd-csi-led";
				csi0_dev0_flvdd_vol = <0x325aa0>;
				csi0_dev0_act_used = <0x0>;
				csi0_dev0_act_name = "ad5820_act";
				csi0_dev0_act_slave = <0x18>;
				status = "okay";
				device_type = "csi0_dev0";
				csi0_dev0_afvdd;
				csi0_dev0_afvdd_vol;
				csi0_dev0_power_en;
				csi0_dev0_reset = <0x30 0x4 0xe 0x0 0x0 0x1 0x0>;
				csi0_dev0_pwdn = <0x30 0x4 0xf 0x0 0x0 0x1 0x0>;
				csi0_dev0_flash_en;
				csi0_dev0_flash_mode;
				csi0_dev0_af_pwdn;
			};

			dev@1 {
				csi0_dev1_mname = "gc0328c";
				csi0_dev1_twi_addr = <0x42>;
				csi0_dev1_pos = "front";
				csi0_dev1_isp_used = <0x1>;
				csi0_dev1_fmt = <0x0>;
				csi0_dev1_stby_mode = <0x1>;
				csi0_dev1_vflip = <0x0>;
				csi0_dev1_hflip = <0x0>;
				csi0_dev1_iovdd = "iovdd-csi";
				csi0_dev1_iovdd_vol = <0x2ab980>;
				csi0_dev1_avdd = "avdd-csi";
				csi0_dev1_avdd_vol = <0x2ab980>;
				csi0_dev1_dvdd = "dvdd-csi-18";
				csi0_dev1_dvdd_vol = <0x1b7740>;
				csi0_dev1_flash_used = <0x0>;
				csi0_dev1_flash_type = <0x2>;
				csi0_dev1_flvdd = "vdd-csi-led";
				csi0_dev1_flvdd_vol = <0x325aa0>;
				csi0_dev1_act_used = <0x0>;
				csi0_dev1_act_name = "ad5820_act";
				csi0_dev1_act_slave = <0x18>;
				status = "okay";
				device_type = "csi0_dev1";
				csi0_dev1_afvdd;
				csi0_dev1_afvdd_vol;
				csi0_dev1_power_en;
				csi0_dev1_reset = <0x30 0x4 0xe 0x0 0x0 0x1 0x0>;
				csi0_dev1_pwdn = <0x30 0x4 0x10 0x0 0x0 0x1 0x0>;
				csi0_dev1_flash_en;
				csi0_dev1_flash_mode;
				csi0_dev1_af_pwdn;
			};
		};

		vdevice@0 {
			compatible = "allwinner,sun50i-vdevice";
			device_type = "Vdevice";
			pinctrl-names = "default";
			test-gpios = <0x7d 0xb 0x0 0x1 0x2 0x3 0x4>;
			status = "okay";
			pinctrl-0 = <0xbf>;
		};

		ce@1c15000 {
			compatible = "allwinner,sunxi-ce";
			reg = <0x0 0x1c15000 0x0 0x80 0x0 0x1c15800 0x0 0x80>;
			interrupts = <0x0 0x5e 0xff01 0x0 0x50 0xff01>;
			clock-frequency = <0x11e1a300 0xbebc200>;
			clocks = <0x7e 0x7f>;
		};

		deinterlace@0x01e00000 {
			#address-cells = <0x1>;
			#size-cells = <0x0>;
			compatible = "allwinner,sunxi-deinterlace";
			reg = <0x0 0x1e00000 0x0 0x77c>;
			interrupts = <0x0 0x5d 0x4>;
			clocks = <0x80 0x4>;
			status = "okay";
			device_type = "di";
		};

		smartcard@0x01c2c400 {
			#address-cells = <0x1>;
			#size-cells = <0x0>;
			compatible = "allwinner,sunxi-scr";
			reg = <0x0 0x1c2c400 0x0 0x100>;
			interrupts = <0x0 0x53 0x4>;
			clocks = <0x81 0x82>;
			clock-frequency = <0x16e3600>;
			pinctrl-names = "default";
			pinctrl-0 = <0x83>;
			status = "okay";
			device_type = "smc";
			smc_used;
			smc_rst;
			smc_vppen;
			smc_vppp;
			smc_det;
			smc_vccen;
			smc_sck;
			smc_sda;
		};

		nmi@0x01f00c00 {
			#address-cells = <0x1>;
			#size-cells = <0x0>;
			compatible = "allwinner,sunxi-nmi";
			reg = <0x0 0x1f00c00 0x0 0x50>;
			nmi_irq_ctrl = <0xc>;
			nmi_irq_en = <0x40>;
			nmi_irq_status = <0x10>;
			nmi_irq_mask = <0x50>;
			status = "okay";
		};

		pmu0@0 {
			compatible = "allwinner,pmu0";
			device_type = "pmu0";
			pmu_batdeten = <0x1>;
			pmu_init_chgend_rate = <0x14>;
			pmu_init_chg_enabled = <0x1>;
			pmu_init_adc_freq = <0x320>;
			pmu_init_adcts_freq = <0x320>;
			pmu_init_chg_pretime = <0x46>;
			pmu_init_chg_csttime = <0x2d0>;
			pmu_batt_cap_correct = <0x1>;
			pmu_chg_end_on_en = <0x0>;
			pmu_pwroff_vol = <0xce4>;
			pmu_pwron_vol = <0xa28>;
			pmu_powkey_off_delay_time = <0x0>;
			pmu_pwrok_time = <0x40>;
			pmu_reset_shutdown_en = <0x1>;
			pmu_restvol_adjust_time = <0x3c>;
			pmu_ocv_cou_adjust_time = <0x3c>;
			pmu_vbusen_func = <0x1>;
			pmu_reset = <0x0>;
			pmu_IRQ_wakeup = <0x1>;
			pmu_hot_shutdowm = <0x1>;
			pmu_inshort = <0x0>;
			pmu_bat_shutdown_ltf = <0xc80>;
			pmu_bat_shutdown_htf = <0xed>;
			status = "okay";
			pmu_id = <0x6>;
			pmu_twi_addr = <0x34>;
			pmu_twi_id = <0x1>;
			pmu_irq_id = <0x40>;
			pmu_chg_ic_temp = <0x0>;
			pmu_battery_rdc = <0x82>;
			pmu_battery_cap = <0x17d4>;
			pmu_runtime_chgcur = <0x320>;
			pmu_suspend_chgcur = <0x708>;
			pmu_shutdown_chgcur = <0x708>;
			pmu_init_chgvol = <0x1068>;
			pmu_ac_vol = <0xfa0>;
			pmu_ac_cur = <0xdac>;
			pmu_usbpc_vol = <0x1130>;
			pmu_usbpc_cur = <0x1f4>;
			pmu_battery_warning_level1 = <0xf>;
			pmu_battery_warning_level2 = <0x0>;
			pmu_chgled_func = <0x1>;
			pmu_chgled_type = <0x0>;
			pmu_bat_para1 = <0x0>;
			pmu_bat_para2 = <0x0>;
			pmu_bat_para3 = <0x0>;
			pmu_bat_para4 = <0x0>;
			pmu_bat_para5 = <0x0>;
			pmu_bat_para6 = <0x0>;
			pmu_bat_para7 = <0x1>;
			pmu_bat_para8 = <0x2>;
			pmu_bat_para9 = <0x3>;
			pmu_bat_para10 = <0x4>;
			pmu_bat_para11 = <0x6>;
			pmu_bat_para12 = <0xc>;
			pmu_bat_para13 = <0x11>;
			pmu_bat_para14 = <0x1b>;
			pmu_bat_para15 = <0x28>;
			pmu_bat_para16 = <0x2e>;
			pmu_bat_para17 = <0x33>;
			pmu_bat_para18 = <0x36>;
			pmu_bat_para19 = <0x39>;
			pmu_bat_para20 = <0x3f>;
			pmu_bat_para21 = <0x43>;
			pmu_bat_para22 = <0x48>;
			pmu_bat_para23 = <0x4d>;
			pmu_bat_para24 = <0x51>;
			pmu_bat_para25 = <0x57>;
			pmu_bat_para26 = <0x5e>;
			pmu_bat_para27 = <0x61>;
			pmu_bat_para28 = <0x64>;
			pmu_bat_para29 = <0x64>;
			pmu_bat_para30 = <0x64>;
			pmu_bat_para31 = <0x64>;
			pmu_bat_para32 = <0x64>;
			pmu_bat_temp_enable = <0x0>;
			pmu_bat_charge_ltf = <0x8d5>;
			pmu_bat_charge_htf = <0x184>;
			pmu_bat_temp_para1 = <0x1d2a>;
			pmu_bat_temp_para2 = <0x1180>;
			pmu_bat_temp_para3 = <0xdbe>;
			pmu_bat_temp_para4 = <0xae2>;
			pmu_bat_temp_para5 = <0x8af>;
			pmu_bat_temp_para6 = <0x6fc>;
			pmu_bat_temp_para7 = <0x5a8>;
			pmu_bat_temp_para8 = <0x3c9>;
			pmu_bat_temp_para9 = <0x298>;
			pmu_bat_temp_para10 = <0x1d2>;
			pmu_bat_temp_para11 = <0x189>;
			pmu_bat_temp_para12 = <0x14d>;
			pmu_bat_temp_para13 = <0x11b>;
			pmu_bat_temp_para14 = <0xf2>;
			pmu_bat_temp_para15 = <0xb3>;
			pmu_bat_temp_para16 = <0x86>;
			pmu_powkey_off_time = <0x1770>;
			pmu_powkey_off_func = <0x0>;
			pmu_powkey_off_en = <0x1>;
			pmu_powkey_long_time = <0x5dc>;
			pmu_powkey_on_time = <0x3e8>;
			power_start = <0x0>;
		};

		regu@0 {
			compatible = "allwinner,pmu0_regu";
			regulator_count = <0x17>;
			status = "okay";
			device_type = "pmu0_regu";
			regulator1 = "axp81x_dcdc1 none vcc-nand vcc-emmc vcc-sdc vcc-usb-30 vcc-io vcc-pd vcc-emmcv vcc-emmcvq33 vcc-sdcvq33 vcc-sdcv vcc-sdcvd";
			regulator2 = "axp81x_dcdc2 none vdd-cpua";
			regulator3 = "axp81x_dcdc3 none";
			regulator4 = "axp81x_dcdc4 none";
			regulator5 = "axp81x_dcdc5 none vcc-dram";
			regulator6 = "axp81x_dcdc6 none vdd-sys";
			regulator7 = "axp81x_dcdc7 none";
			regulator8 = "axp81x_rtc none";
			regulator9 = "axp81x_aldo1 none vdd-csi-led iovdd-csi ";
			regulator10 = "axp81x_aldo2 none vcc-pl";
			regulator11 = "axp81x_aldo3 none vcc-avcc vcc-pll";
			regulator12 = "axp81x_dldo1 none vcc-hdmi-33 vcc-dsi-33";
			regulator13 = "axp81x_dldo2 none vcc-lcd-0";
			regulator14 = "axp81x_dldo3 none vcc-lcd-1";
			regulator15 = "axp81x_dldo4 none vcc-wifi-io vcc-pg";
			regulator16 = "axp81x_eldo1 none vcc-cpvdd vcc-pc vcc-emmcvq18";
			regulator17 = "axp81x_eldo2 none vcc-lcd-2";
			regulator18 = "axp81x_eldo3 none dvdd-csi-18";
			regulator19 = "axp81x_fldo1 none vcc-hsic-12";
			regulator20 = "axp81x_fldo2 none vdd-cpus";
			regulator21 = "axp81x_gpio0ldo none vcc-ctp";
			regulator22 = "axp81x_gpio1ldo none ";
			regulator23 = "axp81x_dc1sw none vcc-wifi-8089";
		};

		nand0@01c03000 {
			compatible = "allwinner,sun50i-nand";
			device_type = "nand0";
			reg = <0x0 0x1c03000 0x0 0x1000>;
			interrupts = <0x0 0x46 0x4>;
			clocks = <0x4 0x84>;
			pinctrl-names = "default", "sleep";
			pinctrl-1 = <0x87>;
			nand0_regulator1 = "vcc-nand";
			nand0_regulator2 = "none";
			nand0_cache_level = <0x55aaaa55>;
			nand0_flush_cache_num = <0x55aaaa55>;
			nand0_capacity_level = <0x55aaaa55>;
			nand0_id_number_ctl = <0x55aaaa55>;
			nand0_print_level = <0x55aaaa55>;
			nand0_p0 = <0x55aaaa55>;
			nand0_p1 = <0x55aaaa55>;
			nand0_p2 = <0x55aaaa55>;
			nand0_p3 = <0x55aaaa55>;
			status = "okay";
			nand0_dragonboard = <0x0>;
			nand0_support_2ch = <0x0>;
			pinctrl-0 = <0xaf 0xb0>;
		};

		thermal_sensor {
			compatible = "allwinner,thermal_sensor";
			reg = <0x0 0x1c25000 0x0 0x400>;
			interrupts = <0x0 0x1f 0x0>;
			clocks = <0x6 0x88>;
			sensor_num = <0x3>;
			shut_temp = <0x78>;
			status = "okay";

			combine0 {
				#thermal-sensor-cells = <0x1>;
				combine_cnt = <0x3>;
				combine_type = "max";
				combine_chn = <0x0 0x1 0x2>;
				linux,phandle = <0x89>;
				phandle = <0x89>;
			};
		};

		cpu_budget_cool {
			compatible = "allwinner,budget_cooling";
			#cooling-cells = <0x2>;
			status = "okay";
			state_cnt = <0x7>;
			cluster_num = <0x1>;
			state0 = <0x119400 0x4>;
			state1 = <0x10d880 0x4>;
			state2 = <0xf6180 0x4>;
			state3 = <0xc7380 0x4>;
			state4 = <0x9e340 0x4>;
			state5 = <0x9e340 0x2>;
			state6 = <0x9e340 0x1>;
			linux,phandle = <0x8b>;
			phandle = <0x8b>;
		};

		gpu_cooling {
			compatible = "allwinner,gpu_cooling";
			reg = <0x0 0x0 0x0 0x0>;
			#cooling-cells = <0x2>;
			status = "okay";
			state_cnt = <0x3>;
			state0 = <0x0>;
			state1 = <0x168>;
			state2 = <0x90>;
			linux,phandle = <0x90>;
			phandle = <0x90>;
		};

		thermal-zones {

			soc_thermal {
				polling-delay-passive = <0x1f4>;
				polling-delay = <0x7d0>;
				thermal-sensors = <0x89 0x0>;

				trips {

					t0 {
						temperature = <0x41>;
						type = "passive";
						hysteresis = <0x0>;
						linux,phandle = <0x8a>;
						phandle = <0x8a>;
					};

					t1 {
						temperature = <0x50>;
						type = "passive";
						hysteresis = <0x0>;
						linux,phandle = <0x8c>;
						phandle = <0x8c>;
					};

					t2 {
						temperature = <0x5a>;
						type = "passive";
						hysteresis = <0x0>;
						linux,phandle = <0x8d>;
						phandle = <0x8d>;
					};

					t3 {
						temperature = <0x64>;
						type = "passive";
						hysteresis = <0x0>;
						linux,phandle = <0x8e>;
						phandle = <0x8e>;
					};

					t4 {
						temperature = <0x55>;
						type = "passive";
						hysteresis = <0x0>;
						linux,phandle = <0x8f>;
						phandle = <0x8f>;
					};

					t5 {
						temperature = <0x5f>;
						type = "passive";
						hysteresis = <0x0>;
						linux,phandle = <0x91>;
						phandle = <0x91>;
					};

					t6 {
						temperature = <0x6e>;
						type = "critical";
						hysteresis = <0x0>;
					};
				};

				cooling-maps {

					bind0 {
						contribution = <0x0>;
						trip = <0x8a>;
						cooling-device = <0x8b 0x1 0x1>;
					};

					bind1 {
						contribution = <0x0>;
						trip = <0x8c>;
						cooling-device = <0x8b 0x2 0x2>;
					};

					bind2 {
						contribution = <0x0>;
						trip = <0x8d>;
						cooling-device = <0x8b 0x3 0x4>;
					};

					bind3 {
						contribution = <0x0>;
						trip = <0x8e>;
						cooling-device = <0x8b 0x5 0x6>;
					};

					bind4 {
						contribution = <0x0>;
						trip = <0x8f>;
						cooling-device = <0x90 0x1 0x1>;
					};

					bind5 {
						contribution = <0x0>;
						trip = <0x91>;
						cooling-device = <0x90 0x2 0x2>;
					};
				};
			};
		};

		keyboard {
			compatible = "allwinner,keyboard_2000mv";
			reg = <0x0 0x1c21800 0x0 0x400>;
			interrupts = <0x0 0x1e 0x0>;
			status = "okay";
			key_cnt = <0x5>;
			key1 = <0xf0 0x73>;
			key2 = <0x1f4 0x72>;
			key3 = <0x2bc 0x8b>;
			key4 = <0x37a 0x1c>;
			key5 = <0x7d0 0x66>;
		};

		eth@01c30000 {
			compatible = "allwinner,sunxi-gmac";
			reg = <0x0 0x1c30000 0x0 0x40000 0x0 0x1c00000 0x0 0x30>;
			pinctrl-names = "default";
			pinctrl-0 = <0x92>;
			interrupts = <0x0 0x52 0x4>;
			interrupt-names = "gmacirq";
			clocks = <0x93>;
			clock-names = "gmac";
			phy-mode = "rgmii";
			tx-delay = <0x7>;
			rx-delay = <0x1f>;
			gmac_power1 = "axp81x_dldo2:2500000";
			gmac_power2 = "axp81x_eldo2:1800000";
			gmac_power3 = "axp81x_fldo1:1200000";
			status = "disable";
		};

		product {
			device_type = "product";
			version = "100";
			machine = "evb";
		};

		platform {
			device_type = "platform";
			eraseflag = <0x1>;
			next_work = <0x3>;
			debug_mode = <0x0>;
		};

		target {
			device_type = "target";
			boot_clock = <0x3f0>;
			storage_type = <0xffffffff>;
			burn_key = <0x1>;
			dragonboard_test = <0x0>;
		};

		power_sply {
			device_type = "power_sply";
			dcdc1_vol = <0xf4e5c>;
			dcdc2_vol = <0xf468c>;
			dcdc6_vol = <0xf468c>;
			aldo1_vol = <0xaf0>;
			aldo2_vol = <0xf4948>;
			aldo3_vol = <0xf4df8>;
			dldo1_vol = <0xce4>;
			dldo2_vol = <0xce4>;
			dldo3_vol = <0xce4>;
			dldo4_vol = <0xf4f24>;
			eldo1_vol = <0xf4948>;
			eldo2_vol = <0x708>;
			eldo3_vol = <0x708>;
			fldo2_vol = <0xf468c>;
			gpio0_vol = <0xf4e5c>;
		};

		card_boot {
			device_type = "card_boot";
			logical_start = <0xa000>;
			sprite_gpio0;
		};

		pm_para {
			device_type = "pm_para";
			standby_mode = <0x1>;
		};

		card0_boot_para {
			device_type = "card0_boot_para";
			card_ctrl = <0x0>;
			card_high_speed = <0x1>;
			card_line = <0x4>;
			pinctrl-0 = <0x9d>;
		};

		card2_boot_para {
			device_type = "card2_boot_para";
			card_ctrl = <0x2>;
			card_high_speed = <0x1>;
			card_line = <0x8>;
			pinctrl-0 = <0x9e>;
			sdc_ex_dly_used = <0x2>;
		};

		twi_para {
			device_type = "twi_para";
			twi_port = <0x0>;
			pinctrl-0 = <0x9f>;
		};

		uart_para {
			device_type = "uart_para";
			uart_debug_port = <0x0>;
			pinctrl-0 = <0xa0>;
		};

		jtag_para {
			device_type = "jtag_para";
			jtag_enable = <0x1>;
			pinctrl-0 = <0xa1>;
		};

		clock {
			device_type = "clock";
			pll4 = <0x12c>;
			pll6 = <0x258>;
			pll8 = <0x168>;
			pll9 = <0x129>;
			pll10 = <0x108>;
		};

		gmac_para {
			device_type = "gmac_para";
			gmac_used = <0x0>;
			pinctrl-0 = <0xa2>;
		};

		rtp_para {
			device_type = "rtp_para";
			rtp_used = <0x0>;
			rtp_screen_size = <0x5>;
			rtp_regidity_level = <0x5>;
			rtp_press_threshold_enable = <0x0>;
			rtp_press_threshold = <0x1f40>;
			rtp_sensitive_level = <0xf>;
			rtp_exchange_x_y_flag = <0x0>;
		};

		ctp {
			device_type = "ctp";
			compatible = "allwinner,sun50i-ctp-para";
			status = "disabled";
			ctp_name = "gsl_a106_xll";
			ctp_cob_gslX680 = <0x426>;
			ctp_twi_id = <0x0>;
			ctp_twi_addr = <0x40>;
			ctp_screen_max_x = <0x320>;
			ctp_screen_max_y = <0x500>;
			ctp_revert_x_flag = <0x1>;
			ctp_revert_y_flag = <0x1>;
			ctp_exchange_x_y_flag = <0x0>;
			ctp_int_port = <0x30 0x7 0x4 0x6 0xffffffff 0xffffffff 0xffffffff>;
			ctp_wakeup = <0x30 0x7 0x8 0x1 0xffffffff 0xffffffff 0x1>;
			ctp_power_ldo = "vcc-ctp";
			ctp_power_ldo_vol = <0xce4>;
			ctp_power_io;
		};

		ctp_list {
			device_type = "ctp_list";
			compatible = "allwinner,sun50i-ctp-list";
			status = "disabled";
			gslX680new = <0x1>;
			gt9xx_ts = <0x0>;
			gt9xxnew_ts = <0x0>;
			gt82x = <0x0>;
			zet622x = <0x0>;
			aw5306_ts = <0x0>;
		};

		tkey_para {
			device_type = "tkey_para";
			tkey_used = <0x0>;
			tkey_twi_id;
			tkey_twi_addr;
			tkey_int;
		};

		motor_para {
			device_type = "motor_para";
			motor_used = <0x0>;
			motor_shake = <0x31 0xfffe 0x3 0x1 0xffffffff 0xffffffff 0x1>;
		};

		pwm16 {
			device_type = "pwm16";
			s_pwm0_used = <0x0>;
			pinctrl-0 = <0xb5>;
			pinctrl-1 = <0xb6>;
		};

		tvout_para {
			device_type = "tvout_para";
			tvout_used;
			tvout_channel_num;
			tv_en;
		};

		tvin_para {
			device_type = "tvin_para";
			tvin_used;
			tvin_channel_num;
		};

		serial_feature {
			device_type = "serial_feature";
			sn_filename = "ULI/factory/snum.txt";
		};

		gsensor {
			device_type = "gsensor";
			compatible = "allwinner,sun50i-gsensor-para";
			status = "okay";
			gsensor_twi_id = <0x1>;
			gsensor_twi_addr = <0x1d>;
			gsensor_vcc_io = "vcc-io";
			gsensor_vcc_io_val = <0xce4>;
			gsensor_int1 = <0x30 0x7 0x5 0x6 0x1 0xffffffff 0xffffffff>;
			gsensor_int2 = <0x30 0x7 0x6 0x6 0x1 0xffffffff 0xffffffff>;
		};

		gsensor_list {
			device_type = "gsensor_list";
			compatible = "allwinner,sun50i-gsensor-list-para";
			gsensor_list__used = <0x1>;
			lsm9ds0_acc_mag = <0x0>;
			bma250 = <0x1>;
			mma8452 = <0x0>;
			mma7660 = <0x0>;
			mma865x = <0x0>;
			afa750 = <0x0>;
			lis3de_acc = <0x0>;
			lis3dh_acc = <0x0>;
			kxtik = <0x0>;
			dmard10 = <0x0>;
			dmard06 = <0x0>;
			mxc622x = <0x0>;
			fxos8700 = <0x0>;
			lsm303d = <0x0>;
			sc7a30 = <0x0>;
		};

		3g_para {
			device_type = "3g_para";
			3g_used = <0x0>;
			3g_usbc_num = <0x2>;
			3g_uart_num = <0x0>;
			bb_vbat = <0x7d 0xb 0x3 0x1 0xffffffff 0xffffffff 0x0>;
			bb_host_wake = <0x7d 0xc 0x0 0x1 0xffffffff 0xffffffff 0x0>;
			bb_on = <0x7d 0xc 0x1 0x1 0xffffffff 0xffffffff 0x0>;
			bb_pwr_on = <0x7d 0xc 0x3 0x1 0xffffffff 0xffffffff 0x0>;
			bb_wake = <0x7d 0xc 0x4 0x1 0xffffffff 0xffffffff 0x0>;
			bb_rf_dis = <0x7d 0xc 0x5 0x1 0xffffffff 0xffffffff 0x0>;
			bb_rst = <0x7d 0xc 0x6 0x1 0xffffffff 0xffffffff 0x0>;
			3g_int;
		};

		gyroscopesensor {
			device_type = "gyroscopesensor";
			compatible = "allwinner,sun50i-gyr_sensors-para";
			status = "disabled";
			gy_twi_id = <0x2>;
			gy_twi_addr = <0x6a>;
			gy_int1 = <0x30 0x0 0xa 0x6 0x1 0xffffffff 0xffffffff>;
			gy_int2;
		};

		gy_list {
			device_type = "gy_list";
			compatible = "allwinner,sun50i-gyr_sensors-list-para";
			status = "disabled";
			lsm9ds0_gyr = <0x1>;
			l3gd20_gyr = <0x0>;
			bmg160_gyr = <0x1>;
		};

		lightsensor {
			device_type = "lightsensor";
			compatible = "allwinner,sun50i-lsensors-para";
			status = "disabled";
			ls_twi_id = <0x2>;
			ls_twi_addr = <0x23>;
			ls_int = <0x30 0x0 0xc 0x6 0x1 0xffffffff 0xffffffff>;
		};

		ls_list {
			device_type = "ls_list";
			compatible = "allwinner,sun50i-lsensors-list-para";
			status = "disabled";
			ltr_501als = <0x1>;
			jsa1212 = <0x0>;
			jsa1127 = <0x1>;
			stk3x1x = <0x0>;
		};

		compasssensor {
			device_type = "compasssensor";
			compatible = "allwinner,sun50i-compass-para";
			status = "disabled";
			compass_twi_id = <0x2>;
			compass_twi_addr = <0xd>;
			compass_int = <0x30 0x0 0xb 0x6 0x1 0xffffffff 0xffffffff>;
		};

		compass_list {
			device_type = "compass_list";
			compatible = "allwinner,sun50i-compass-list-para";
			status = "disabled";
			lsm9ds0 = <0x1>;
			lsm303d = <0x0>;
		};

		recovery_key {
			device_type = "recovery_key";
			key_max = <0xc>;
			key_min = <0xa>;
		};

		fastboot_key {
			device_type = "fastboot_key";
			key_max = <0x6>;
			key_min = <0x4>;
		};

		secure {
			device_type = "secure";
			dram_region_mbytes = <0x40>;
			drm_region_mbytes = <0x40>;
			drm_region_start_mbytes = <0x0>;
		};

		hall_para {
			device_type = "hall_para";
			pinctrl-0 = <0xc0>;
		};

		inet_gpio {
			device_type = "inet_gpio";
			compatible = "allwinner,inet-gpio";
			inet_gpio1 = <0x30 0x7 0x8 0x0 0x1 0xffffffff 0xffffffff>;
			inet_gpio2 = <0x30 0x4 0x11 0x1 0x0 0xffffffff 0x1>;
			inet_gpio3 = <0x30 0x1 0x8 0x1 0x0 0xffffffff 0x0>;
		};
	};

	aliases {
		serial0 = "/soc@01c00000/uart@01c28000";
		serial1 = "/soc@01c00000/uart@01c28400";
		serial2 = "/soc@01c00000/uart@01c28800";
		serial3 = "/soc@01c00000/uart@01c28c00";
		serial4 = "/soc@01c00000/uart@01c29000";
		twi0 = "/soc@01c00000/twi@0x01c2ac00";
		twi1 = "/soc@01c00000/twi@0x01c2b000";
		twi2 = "/soc@01c00000/twi@0x01c2b400";
		spi0 = "/soc@01c00000/spi@01c68000";
		spi1 = "/soc@01c00000/spi@01c69000";
		global_timer0 = "/soc@01c00000/timer@1c20c00";
		cci0 = "/soc@01c00000/cci@0x01cb3000";
		mipi0 = "/soc@01c00000/mipi@0x01cb1000";
		csi_res0 = "/soc@01c00000/csi_res@0x01cb0000";
		isp0 = "/soc@01c00000/isp@0x01cb8000";
		vfe0 = "/soc@01c00000/vfe@0";
		mmc0 = "/soc@01c00000/sdmmc@01c0f000";
		mmc2 = "/soc@01c00000/sdmmc@01C11000";
		nand0 = "/soc@01c00000/nand0@01c03000";
		disp = "/soc@01c00000/disp@01000000";
		lcd0 = "/soc@01c00000/lcd0@01c0c000";
		hdmi = "/soc@01c00000/hdmi@01ee0000";
		pwm = "/soc@01c00000/pwm@01c21400";
		pwm0 = "/soc@01c00000/pwm0@01c21400";
		s_pwm = "/soc@01c00000/s_pwm@1f03800";
		spwm0 = "/soc@01c00000/spwm0@0x01f03800";
		boot_disp = "/soc@01c00000/boot_disp";
	};

	chosen {
		bootargs = "earlyprintk=sunxi-uart,0x01c28000 loglevel=8 initcall_debug=1 console=ttyS0 init=/init";
		linux,initrd-start = <0x0 0x0>;
		linux,initrd-end = <0x0 0x0>;
	};

	cpus {
		#address-cells = <0x2>;
		#size-cells = <0x0>;

		cpu@0 {
			device_type = "cpu";
			compatible = "arm,cortex-a53", "arm,armv8";
			reg = <0x0 0x0>;
			enable-method = "psci";
			cpufreq_tbl = <0x75300 0x927c0 0xafc80 0xc7380 0xf6180 0x10d880 0x119400 0x124f80 0x148200>;
			clock-latency = <0x1e8480>;
			clock-frequency = <0x3c14dc00>;
			cpu-idle-states = <0x94 0x95 0x96>;
		};

		cpu@1 {
			device_type = "cpu";
			compatible = "arm,cortex-a53", "arm,armv8";
			reg = <0x0 0x1>;
			enable-method = "psci";
			clock-frequency = <0x3c14dc00>;
			cpu-idle-states = <0x94 0x95 0x96>;
		};

		cpu@2 {
			device_type = "cpu";
			compatible = "arm,cortex-a53", "arm,armv8";
			reg = <0x0 0x2>;
			enable-method = "psci";
			clock-frequency = <0x3c14dc00>;
			cpu-idle-states = <0x94 0x95 0x96>;
		};

		cpu@3 {
			device_type = "cpu";
			compatible = "arm,cortex-a53", "arm,armv8";
			reg = <0x0 0x3>;
			enable-method = "psci";
			clock-frequency = <0x3c14dc00>;
			cpu-idle-states = <0x94 0x95 0x96>;
		};

		idle-states {
			entry-method = "arm,psci";

			cpu-sleep-0 {
				compatible = "arm,idle-state";
				arm,psci-suspend-param = <0x10000>;
				entry-latency-us = <0x28>;
				exit-latency-us = <0x64>;
				min-residency-us = <0x96>;
				linux,phandle = <0x94>;
				phandle = <0x94>;
			};

			cluster-sleep-0 {
				compatible = "arm,idle-state";
				arm,psci-suspend-param = <0x1010000>;
				entry-latency-us = <0x1f4>;
				exit-latency-us = <0x3e8>;
				min-residency-us = <0x9c4>;
				linux,phandle = <0x95>;
				phandle = <0x95>;
			};

			sys-sleep-0 {
				compatible = "arm,idle-state";
				arm,psci-suspend-param = <0x2010000>;
				entry-latency-us = <0x3e8>;
				exit-latency-us = <0x7d0>;
				min-residency-us = <0x1194>;
				linux,phandle = <0x96>;
				phandle = <0x96>;
			};
		};
	};

	psci {
		compatible = "arm,psci-0.2";
		method = "smc";
		psci_version = <0x84000000>;
		cpu_suspend = <0xc4000001>;
		cpu_off = <0x84000002>;
		cpu_on = <0xc4000003>;
		affinity_info = <0xc4000004>;
		migrate = <0xc4000005>;
		migrate_info_type = <0x84000006>;
		migrate_info_up_cpu = <0xc4000007>;
		system_off = <0x84000008>;
		system_reset = <0x84000009>;
	};

	n_brom {
		compatible = "allwinner,n-brom";
		reg = <0x0 0x0 0x0 0xc000>;
	};

	s_brom {
		compatible = "allwinner,s-brom";
		reg = <0x0 0x0 0x0 0x10000>;
	};

	sram_a1 {
		compatible = "allwinner,sram_a1";
		reg = <0x0 0x10000 0x0 0x8000>;
	};

	sram_a2 {
		compatible = "allwinner,sram_a2";
		reg = <0x0 0x40000 0x0 0x14000>;
	};

	prcm {
		compatible = "allwinner,prcm";
		reg = <0x0 0x1f01400 0x0 0x400>;
	};

	cpuscfg {
		compatible = "allwinner,cpuscfg";
		reg = <0x0 0x1f01c00 0x0 0x400>;
	};

	ion {
		compatible = "allwinner,sunxi-ion";

		system_contig {
			type = <0x1>;
		};

		cma {
			type = <0x4>;
		};

		system {
			type = <0x0>;
		};

		secure {
			type = <0x6>;
		};
	};

	dram {
		compatible = "allwinner,dram";
		clocks = <0x97 0x98>;
		clock-names = "pll_ddr0", "pll_ddr1";
		dram_clk = <0x2a0>;
		dram_type = <0x3>;
		dram_zq = <0x3b3bbb>;
		dram_odt_en = <0x1>;
		dram_para1 = <0x10e410e4>;
		dram_para2 = <0x1000>;
		dram_mr0 = <0x1840>;
		dram_mr1 = <0x40>;
		dram_mr2 = <0x18>;
		dram_mr3 = <0x2>;
		dram_tpr0 = <0x4a2195>;
		dram_tpr1 = <0x2424190>;
		dram_tpr2 = <0x8b060>;
		dram_tpr3 = <0x50005dc>;
		dram_tpr4 = <0x0>;
		dram_tpr5 = <0x0>;
		dram_tpr6 = <0x0>;
		dram_tpr7 = <0x2a066198>;
		dram_tpr8 = <0x0>;
		dram_tpr9 = <0x0>;
		dram_tpr10 = <0x8808>;
		dram_tpr11 = <0x0>;
		dram_tpr12 = <0x55550000>;
		dram_tpr13 = <0x4002900>;
		device_type = "dram";
	};

	memory@40000000 {
		device_type = "memory";
		reg = <0x0 0x40000000 0x0 0x40000000>;
	};

	interrupt-controller@1c81000 {
		compatible = "arm,cortex-a15-gic", "arm,cortex-a9-gic";
		#interrupt-cells = <0x3>;
		#address-cells = <0x0>;
		device_type = "gic";
		interrupt-controller;
		reg = <0x0 0x1c81000 0x0 0x1000 0x0 0x1c82000 0x0 0x2000 0x0 0x1c84000 0x0 0x2000 0x0 0x1c86000 0x0 0x2000>;
		interrupts = <0x1 0x9 0xf04>;
		linux,phandle = <0x1>;
		phandle = <0x1>;
	};

	sunxi-chipid@1c14200 {
		compatible = "sunxi,sun50i-chipid";
		device_type = "chipid";
		reg = <0x0 0x1c14200 0x0 0x400>;
	};

	timer {
		compatible = "arm,armv8-timer";
		interrupts = <0x1 0xd 0xff01 0x1 0xe 0xff01 0x1 0xb 0xff01 0x1 0xa 0xff01>;
		clock-frequency = <0x16e3600>;
	};

	pmu {
		compatible = "arm,armv8-pmuv3";
		interrupts = <0x0 0x78 0x4 0x0 0x79 0x4 0x0 0x7a 0x4 0x0 0x7b 0x4>;
	};

	dvfs_table {
		compatible = "allwinner,dvfs_table";
		max_freq = <0x44aa2000>;
		min_freq = <0x1c9c3800>;
		lv_count = <0x8>;
		lv1_freq = <0x44aa2000>;
		lv1_volt = <0x514>;
		lv2_freq = <0x41cdb400>;
		lv2_volt = <0x4ec>;
		lv3_freq = <0x3c14dc00>;
		lv3_volt = <0x4b0>;
		lv4_freq = <0x30a32c00>;
		lv4_volt = <0x44c>;
		lv5_freq = <0x269fb200>;
		lv5_volt = <0x410>;
		lv6_freq = <0x0>;
		lv6_volt = <0x410>;
		lv7_freq = <0x0>;
		lv7_volt = <0x410>;
		lv8_freq = <0x0>;
		lv8_volt = <0x410>;
		device_type = "dvfs_table";
	};

	dramfreq {
		compatible = "allwinner,sunxi-dramfreq";
		reg = <0x0 0x1c62000 0x0 0x1000 0x0 0x1c63000 0x0 0x1000 0x0 0x1c20000 0x0 0x800>;
		clocks = <0x97 0x98 0x99>;
		status = "okay";
	};

	uboot {
	};

	gpu@0x01c40000 {
		compatible = "arm,mali-400", "arm,mali-utgard";
		reg = <0x0 0x1c40000 0x0 0x10000>;
		interrupts = <0x0 0x61 0x4 0x0 0x62 0x4 0x0 0x63 0x4 0x0 0x64 0x4 0x0 0x66 0x4 0x0 0x67 0x4>;
		interrupt-names = "IRQGP", "IRQGPMMU", "IRQPP0", "IRQPPMMU0", "IRQPP1", "IRQPPMMU1";
		clocks = <0x9a 0x9b>;
		device_type = "gpu_mali400_0";
		normal_freq = <0x1c8>;
		scene_ctrl_status = <0x0>;
		temp_ctrl_status = <0x1>;
	};

	wlan {
		compatible = "allwinner,sunxi-wlan";
		wlan_io_regulator = "vcc-wifi-io";
		wlan_busnum = <0x1>;
		status = "okay";
		device_type = "wlan";
		clocks;
		wlan_power;
		wlan_regon = <0x7d 0xb 0x2 0x1 0xffffffff 0xffffffff 0x0>;
		wlan_hostwake = <0x7d 0xb 0x3 0x6 0xffffffff 0xffffffff 0x0>;
	};

	bt {
		compatible = "allwinner,sunxi-bt";
		bt_io_regulator = "vcc-wifi-io";
		status = "okay";
		device_type = "bt";
		clocks;
		bt_power;
		bt_rst_n = <0x7d 0xb 0x4 0x1 0xffffffff 0xffffffff 0x0>;
	};

	btlpm {
		compatible = "allwinner,sunxi-btlpm";
		uart_index = <0x1>;
		status = "okay";
		device_type = "btlpm";
		bt_wake = <0x7d 0xb 0x6 0x1 0xffffffff 0xffffffff 0x1>;
		bt_hostwake = <0x7d 0xb 0x5 0x6 0xffffffff 0xffffffff 0x0>;
	};
};
