Projects/SpaceLight

From Hackerspace Amersfoort
Jump to: navigation, search

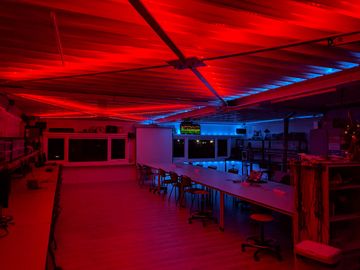

Bitlair space2 leds.jpg
Project Space Light
Name Space Light
Start 2017/01/22
End
Contact polyfloyd
Website
Information LED verlichting in de space
Status Production


OrangePi PC pinnout

//                                      |-----|
// 3.3V (next to the board edge)        |1 |2 | 5V
// PA12 (TWI0_SDA/DI_RX/PA_EINT12)      |3 |4 | 5V
// PA11 (TWI0_SCK/DI_TX/PA_EINT11)      |5 |6 | GND
// PA6 (SIM_PWREN/PWM1/PA_EINT6)        |7 |8 | PA13 (SPI1_CS/UART3_TX/PA_EINT13)
// GND                                  |9 |10| PA14 (SPI1_CLK/UART3_RX/PA_EINT14)
// PA1 (UART2_RX/JTAG_CK/PA_EINT1)      |11|12| PD14
// PA0 (UART2_TX/JTAG_MS/PA_EINT0)      |13|14| GND
// PA3 (UART2_CTS/JTAG_DI/PA_EINT3)     |15|16| PC4
// 3.3V                                 |17|18| PC7
// PC0 (SPI0_MOSI) <- ledstrip red      |19|20| GND
// PC1 (SPI0_MISO)                      |21|22| PA2 (UART2_RTS/JTAG_DO/PA_EINT2)
// PC2 (SPI0_CLK)  <- ledstrip green    |23|24| PC3 (SPI0_CS)
// GND             <- ledstrip blue    |25|26| PA21 (PCM0_DIN/SIM_VPPPP/PA_EINT21)
// PA19 (PCM0_CLK/TWI1_SDA/PA_EINT19)   |27|28| PA18 (PCM0_SYNC/TWI1_SCK/PA_EINT18)
// PA7 (SIM_CLK/PA_EINT7)               |29|30| GND
// PA8 (SIM_DATA/PA_EINT8)              |31|32| PG8 (UART1_RTS/PG_EINT8)
// PA9 (SIM_RST/PA_EINT9)               |33|34| GND
// PA10 (SIM_DET/PA_EINT10)             |35|36| PG9 (UART1_CTS/PG_EINT9)
// PA20 (PCM0_DOUT/SIM_VPPEN/PA_EINT20) |37|38| PG6 (UART1_TX/PG_EINT6)
// GND                                  |39|40| PG7 (UART1_RX/PG_EINT7)
//                                      |-----|
