Projects/Mendel90

Project Mendel90
Name	Mendel90
Start	2012/09/14
End
Contact	Zarya
Website
Information	Building a mendel90
Status	Abandoned

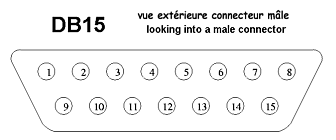

DB-15 pinout

1 - 1	2 - 3	3 - 5	4 - 7	5 - 9	6 - 11	7 - 13	8 - 15
Thermistor +	Spare	Hotend -	Hotend -	Hotend +	Hotend +	Stepper 1	Stepper 2
9 - 2	10 - 4	11 - 6	12 - 8	13 - 10	14 - 12	15 - 14
Thermistor -	Hotend -	Hotend -	Hotend +	Hotend +	Stepper 3	Stepper 4

• tnx to Cookiemonster

Gallery

•
•
•
•
•
•

  Extruder without its gears

•

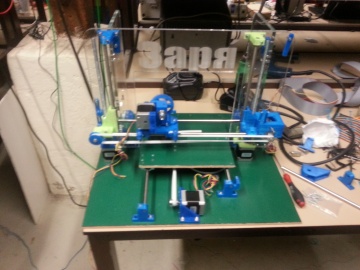

  The printer on the base plate (still a bit to big)

•
•
•
•

  Cut the base plate

•

  Base plate almost done

•

  Base plate and Y axis done
